USD26.50 - USD28.50 / pieces
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF50800-8
- Max. Current:10A
- Max. Voltage:24V
- Mechanical Life:10000circles
- Products name:Touch screen panel
- Ways:8
- Rating:DC 12V/ 24V
- Function:ON-OFF
- Protection:Waterproof
- Packing:Blister packing with Indicator stickers for each switch panel
- Control box:With
- Dimension:80*130mm

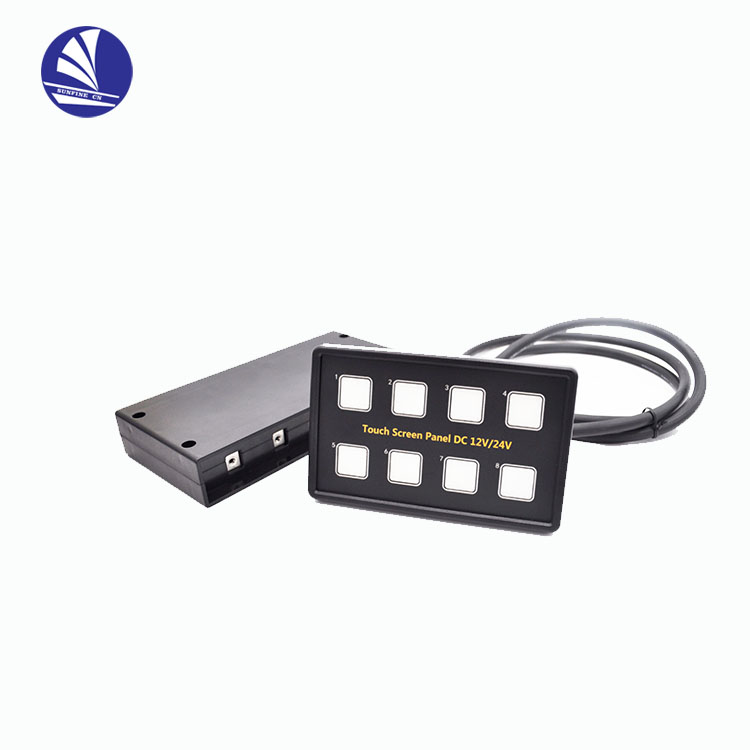

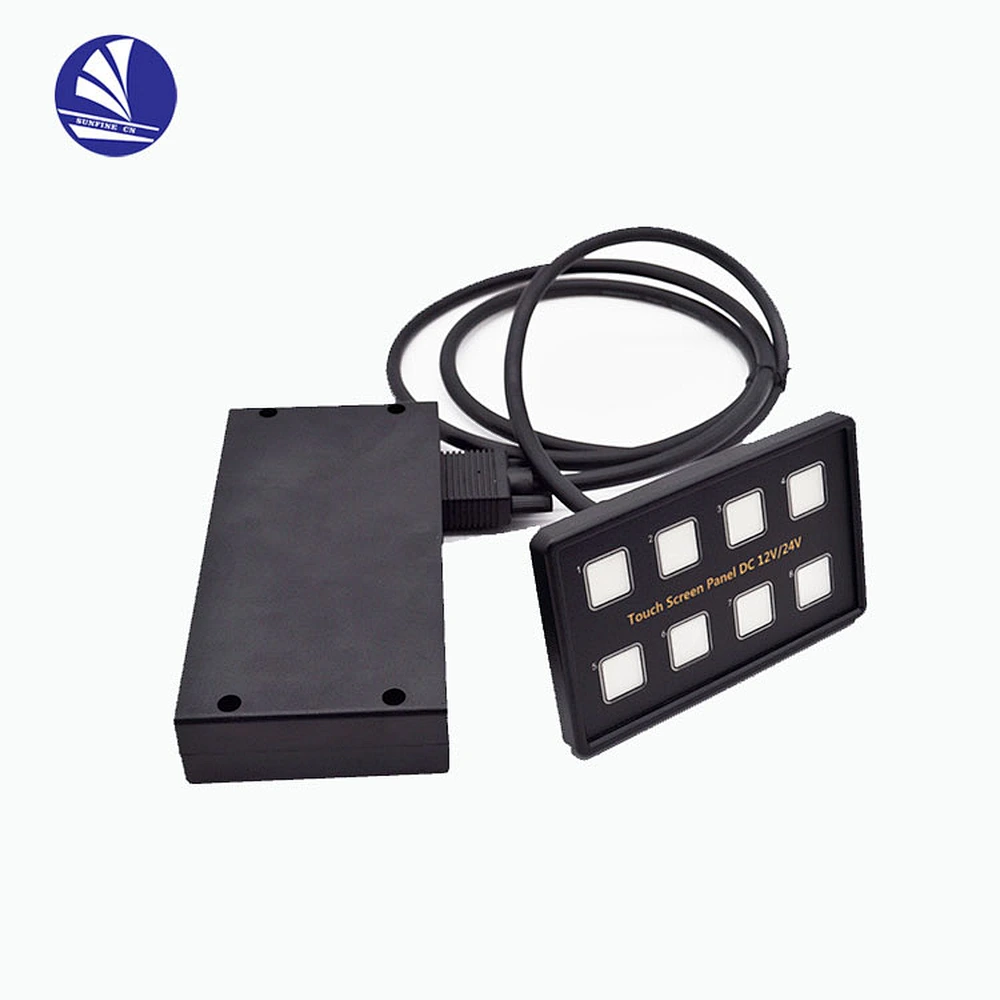

12V 24V 8 Gang LED Switch Panel with Control Box for Car Marine Boat Caravan Truck
Touch screen panel 8 gang
Properties:
This product is composed of a capacitive touch screen and a output circuit control. Its connection control circuitry consists of a 15-pin VGA transmission cable.
Switch Rating: 12V 10A / 24V 10A DC
Panel Rating: Maximum Cumulative Amp: 40A
Stainless Steel Screw x 4
Indication Lable x 45
Electrical wiring [ UL / 1015]
Reverse polarity protection, overvoltage protection, overcurrent protection.
Capacitive touch screen:
* sensing capacitors

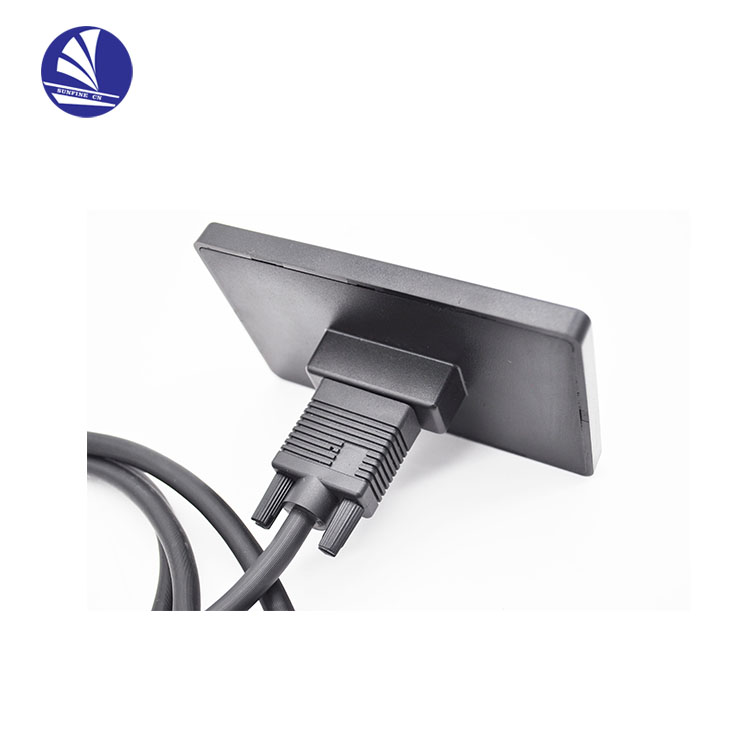

* 1 x 15-pin VGA socket
* colour backlit LED board
* product uses silicone rubber internally for encapsulation
* 1 x 3M double sided adhesive tape used

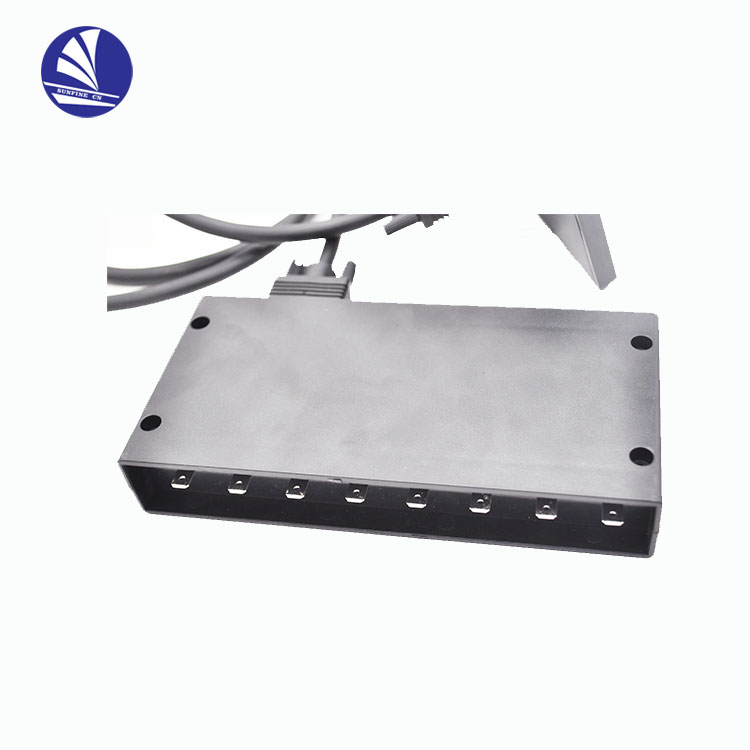

Control box:
* 6/8 PPTC
* 1 x 15-pin VGA socket
* 2 x power input terminals
* 6/8 x Negative output terminals
* Ultrasonically welded enclosure box
| Item No. | Touch switch | Product size W x L | Diecut size W x L |
| SF50800-6 | 6 | 80 x 100 mm | 20 x 50 mm |
| SF50800-8 | 8 | 80 x 130 mm | 20 x 50 mm |
