USD25.00 - USD30.00 / pieces
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF50800
- Max. Current:15A
- Max. Voltage:24V
- Mechanical Life:10000circles
- Products name:Touch control plastic switch panel,touch screen control
- Ways:6
- Rating:DC 12V/ 24V
- Function:ON-OFF
- Protection:Waterproof
- Packing:Blister packing with Indicator stickers for each switch panel

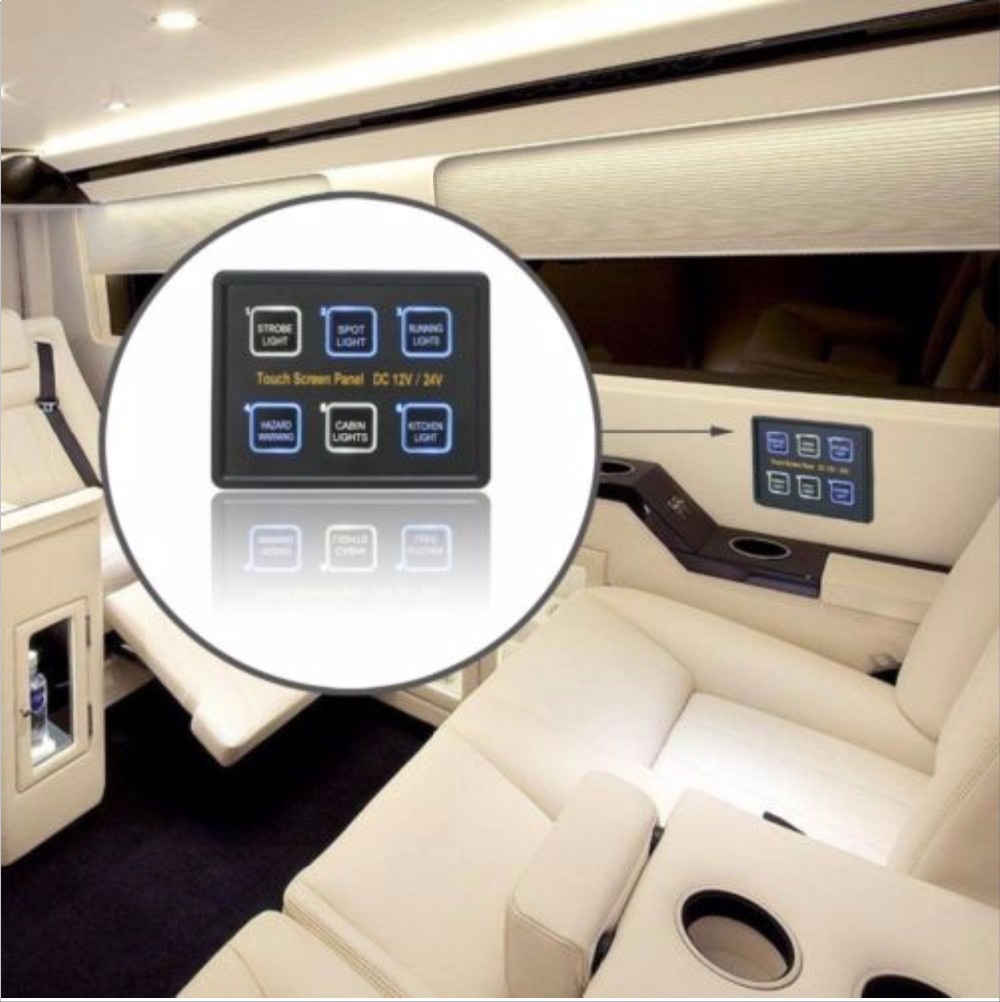

DC 12V/ 24V touch screen control panel 6 Way for boat car
touch control panel 6 way
| Item No. | Input | Specifications |
| SF50800 | DC 12V/ 24V | Capatitive touch screen& output circuit control. With control box, only with small mounting hole. Small mounting hole for your boat, car, RV, etc |
Properties:

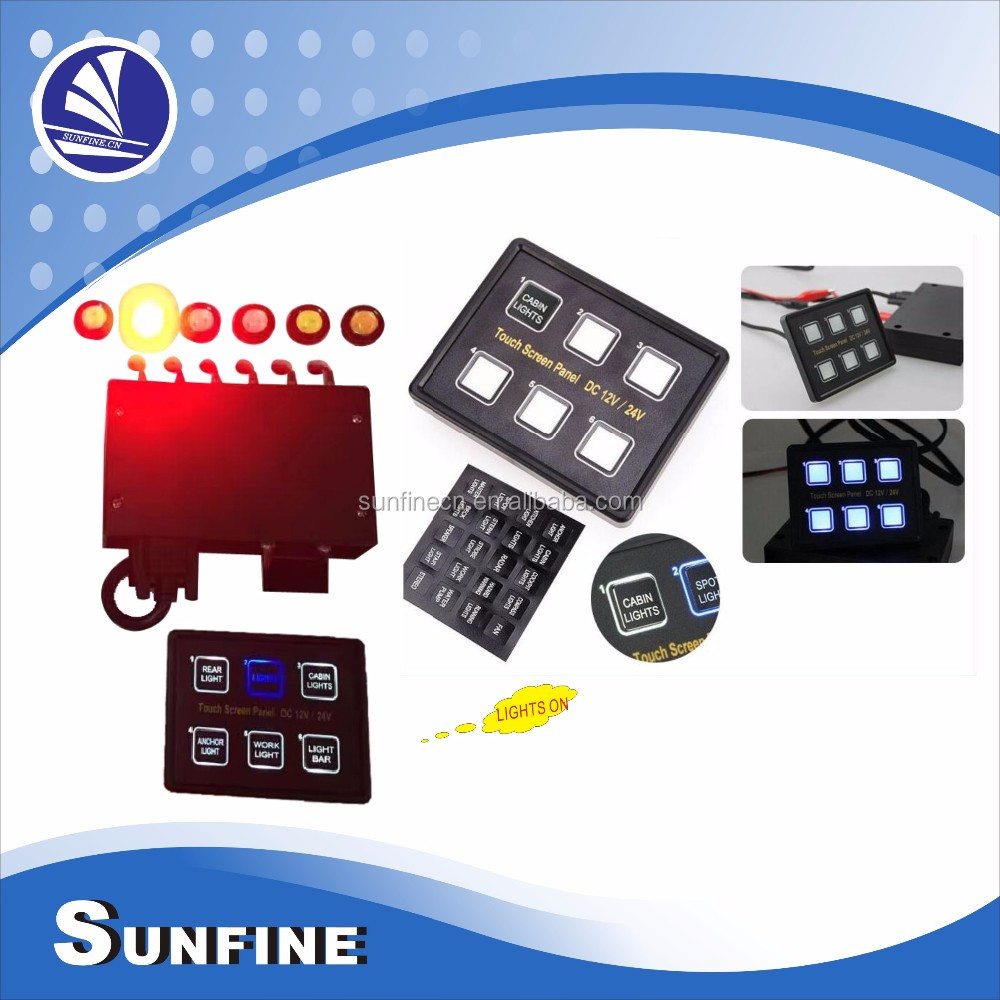

This product is composed of a capacitive touch screen and a output circuit control. Its connection control circuitry consists of a 15-pin VGA transmission cable.
Capacitive touch screen:
6 sensing capacitors
1* 15-pin VGA socket
6 color backlit LED board
Function instruction labels
Product uses silicone rubber internally for encapsulation
1* 3M double sided adhesive tape used
Dimensions: 80mm* 100mm* 10mm
mounting hole dimensions: 20mm* 50mm
Control box:
6* PPTC
1* 15-pin VGA socket
2* power input terminals
6* Negative output terminals
Ultrasonically welded enclosure box
4* fixing screws
Dimensions: 85mm* 135mm* 30mm
Input: 12V/ 24V DC
Output: 12V/ 10A 24V/ 10A DC
Reverse polarity protection, overvoltage protection, overcurrent protection.
