USD1.00 - USD10.00 / set
Model Number:SF50739
Brand Name:SUNFINE
Max. Current:20A
Mechanical Life:10000cycles
Max. Voltage:DC24V AC250V
LED Light Color: Blue, Orange, Red, Green, White
Push Button Circuit Breakers:5A*2 /10A*2 /15A*2
Width:90mm/3.54''
Height:183mm/7.2''
Depth:82mm/3.23''
rocker Switch panel
- Place of Origin:CN;ZHE
- Model Number:SF50739
- Brand Name:SUNFINE
- Max. Current:20A
- Mechanical Life:10000cycles
- Max. Voltage:DC24V AC250V
- LED Light Color: Blue, Orange, Red, Green, White
- Push Button Circuit Breakers:5A*2 /10A*2 /15A*2
- Width:90mm/3.54''
- Height:183mm/7.2''
- Depth:82mm/3.23''
6 gang switch panel with waterproof led
Rocker Switch Panel Black 12V Waterproof with LED
1. More models for your choice
1) Flammability: UL94 V-2
2) Material of rocker: PC/PA66
3) Contacts: Silver alloy
4) Terminal: Brass
5) Electrical life endurance: 10000 cycles
6) Contact resistance: <20mΩ(initial)
7) Insulation resistance: >1000MΩ (500V DC between open contacts)
8) Dielectric strength: >1500V / minutes
9) Ambient temperature: -10°C~85°C
10) Storage temperature: -10°C~85°C
11) Atmospheric humidity: Max.85%
12) Actuating force: 5~8N (dependent on different switch functions)
- Packaging & Shipping

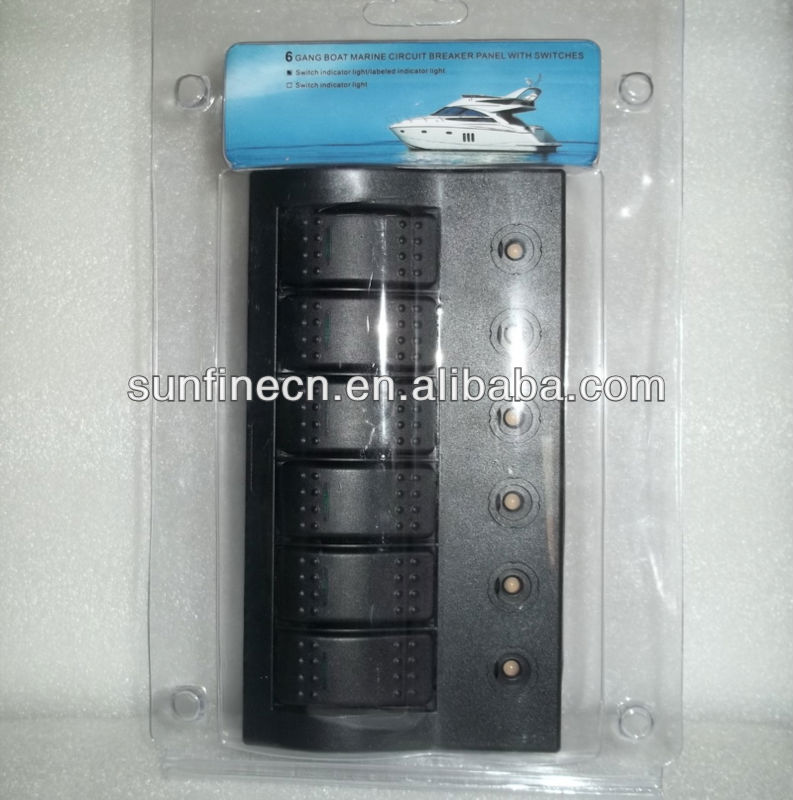

1. Packing: Blister pack with color card, same as above
2. Delivery: 3-10 days after confirming payment
- Our Services
1. Sticker is free for delivery with switch panel.
2. Welcome your OEM writng label on switch and switch panels.
