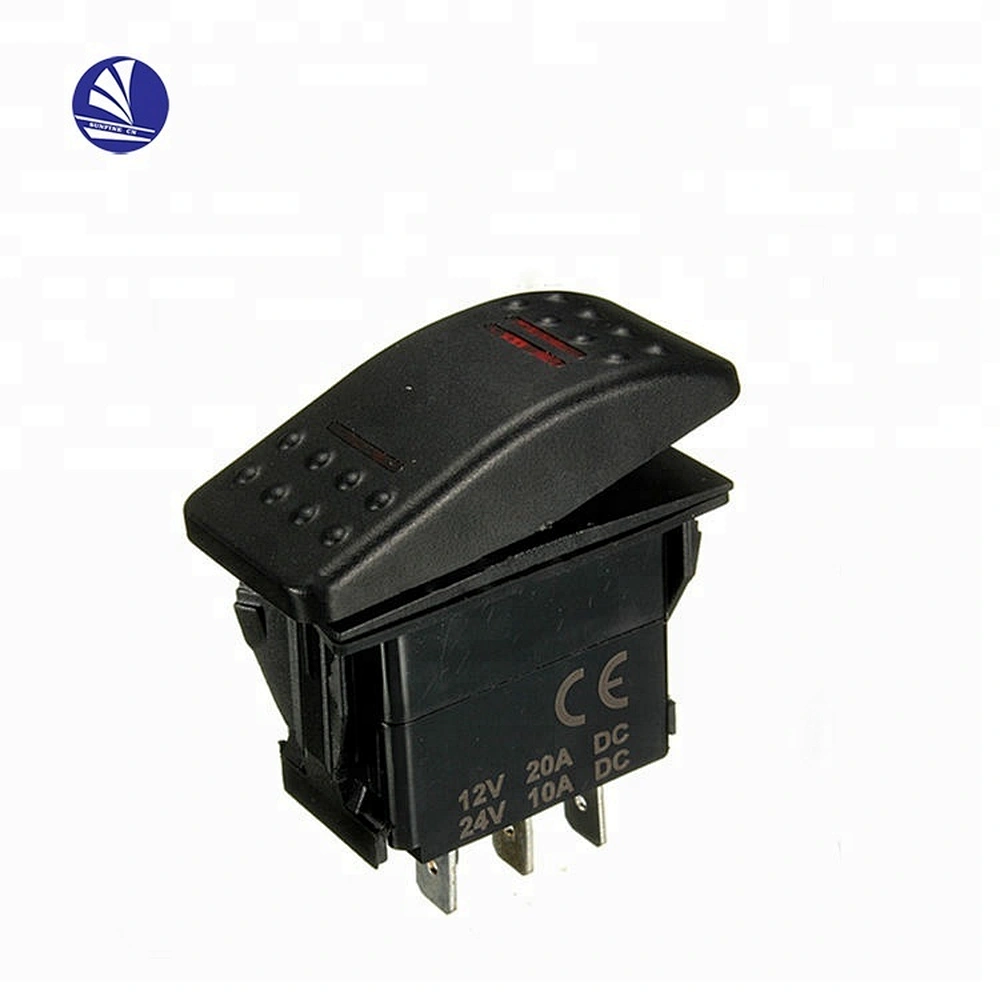

2/3/4/5/6/7/8 PIN SPST MARINE BOAT ON-OFF LED ROCKER SWITCH 12V 24V WATERPROOF
price
USD1.50 - USD3.50 / sets
SF-A5 2LED Series
FOB
50 sets
100000sets / Month
NINGBO, SHANGHAI
Quantity
marine rocker switch,dpdt rocker switch
- Type:Combination Switch
- Place of Origin:CN;ZHE
- Brand Name:sunfine
- Model Number:SF-A5 2LED Series
- Car Make:Universal
- Warranty:1
- Color:Red/ Blue/ Green/ Orange/ White
- Light:2 LED
- Cover:Normal/ Laser Etch
- Packing:Neutral Packing
- MOQ:50pcs
- Certificate:CE UL
- Voltage:DC 12V/24V
- Application:Car/Boat Part
- Quality:100%tested
- Sample:Available
Product Description
PIN SPST MARINE BOAT ON-OFF LED ROCKER SWITCH 12V 24V WATERPROOF KITCHEN LIGHT,blue light
| Production | Rocker switch with 2 LEDS |
| Volt | DC 20A@12V ; DC 10A@24V |
| LED Light Color | RED/GREEN/BLUE/ORANGE/WHITE |
| PIN | 3/4/5/6/7/8 Pins for your choice |
| Type | SPDT/SPST/DPDT/DPTT/DPST |
| Cover Type | SF-A5 Type |
For your choice

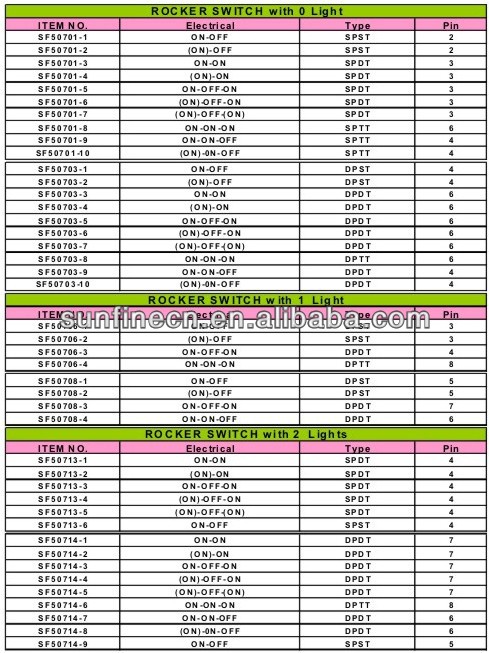

SF NO. with A4 cover with LED Light | Function | Type | Pin |
| SF50713-1-A5BB | ON-ON | SPDT | 4 |
| SF50713-2-A5BB | (ON)-ON | SPDT | 4 |
| SF50713-3-A5BB | ON-OFF-ON | SPDT | 4 |
| SF50713-4-A5BB | (ON)-OFF-ON | SPDT | 4 |
| SF50713-5-A5BB | (ON)-OFF-(ON) | SPDT | 4 |
| SF50713-6-3P-A5BB | ON-OFF | SPST | 3 |
| SF50713-6-4P-A5BB | ON-OFF | SPST | 4 |
| SF50713-6-5P-A5BB | ON-OFF | SPST | 5 |
| SF50713-7-3P-A5BB | (ON)-OFF | SPST | 3 |
| SF50713-7-4P-A5BB | (ON)-OFF | SPST | 4 |
| SF50713-7-5P-A5BB | (ON)-OFF | SPST | 5 |
| SF50714-1-A5BB | ON-ON | DPDT | 7 |
| SF50714-2-A5BB | (ON)-ON | DPDT | 7 |
| SF50714-3-A5BB | ON-OFF-ON | DPDT | 7 |
| SF50713-4-7P-A5BB | (ON)-OFF-ON | DPDT | 7 |
| SF50713-5-7P-A5BB | (ON)-OFF-ON | DPDT | 7 |
| SF50713-6-A-A5BB | (ON)-OFF-(ON) | DPDT | 8 (V A-A) |
| SF50713-6-B-A5BB | ON-ON-ON | DPTT | 68(V A-B) |
| SF50713-7-A-A5BB | ON-ON-ON | DPTT | 6(V A-A) |
| SF50713-7-B-A5BB | ON-ON-OFF | DPDT | 6(V A-B) |
| SF50713-8-A-A5BB | (ON)-ON-OFF | DPDT | 6(V A-A) |
| SF50713-8-B-A5BB | (ON)-ON-OFF | DPDT | 6(V A-B) |
| SF50713-10-A5BB | ON-OFF | DPST | 6 |
| SF50713-11-A5BB | (ON)-OFF | DPST | 6 |
LED ROCKER SWITCH
Product Description

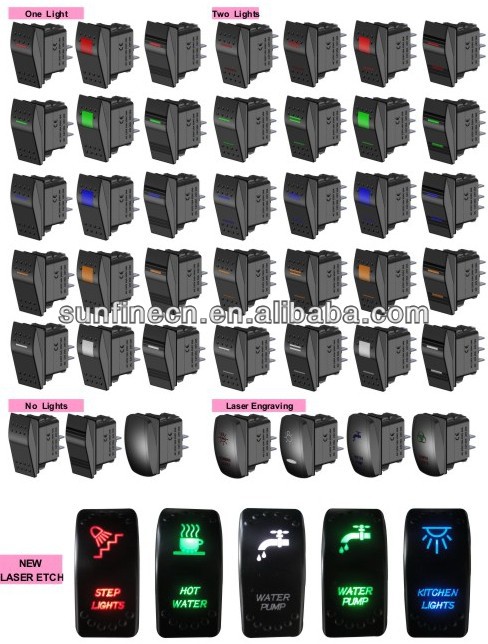

1. More models for your choice

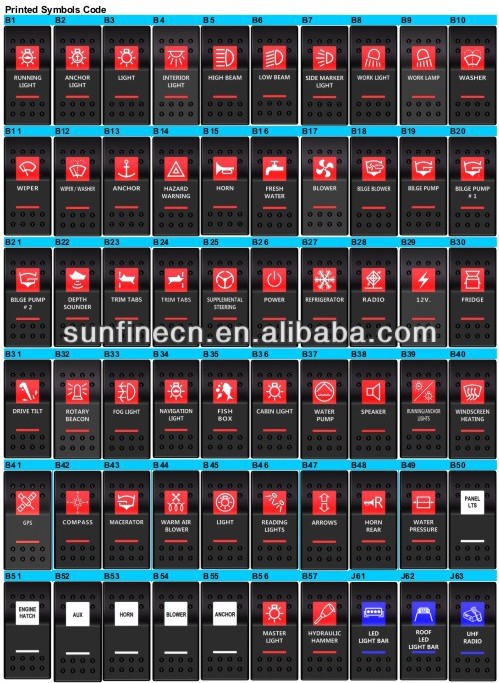

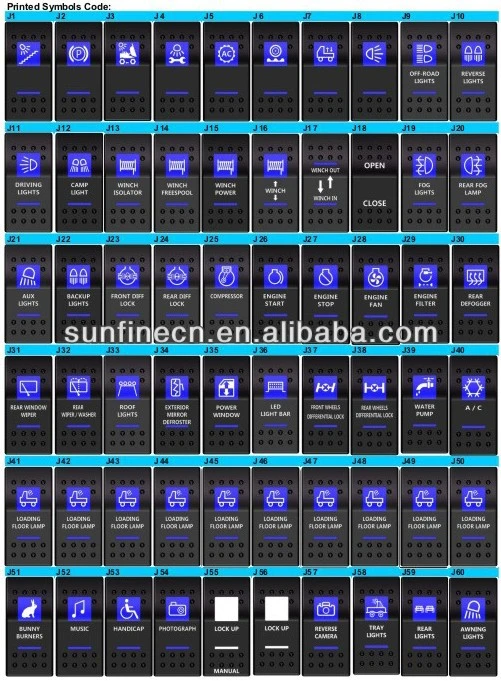

2. Switch cover printing for reference
3.100% brass roller
4. insure switching work life: 10000 cycles

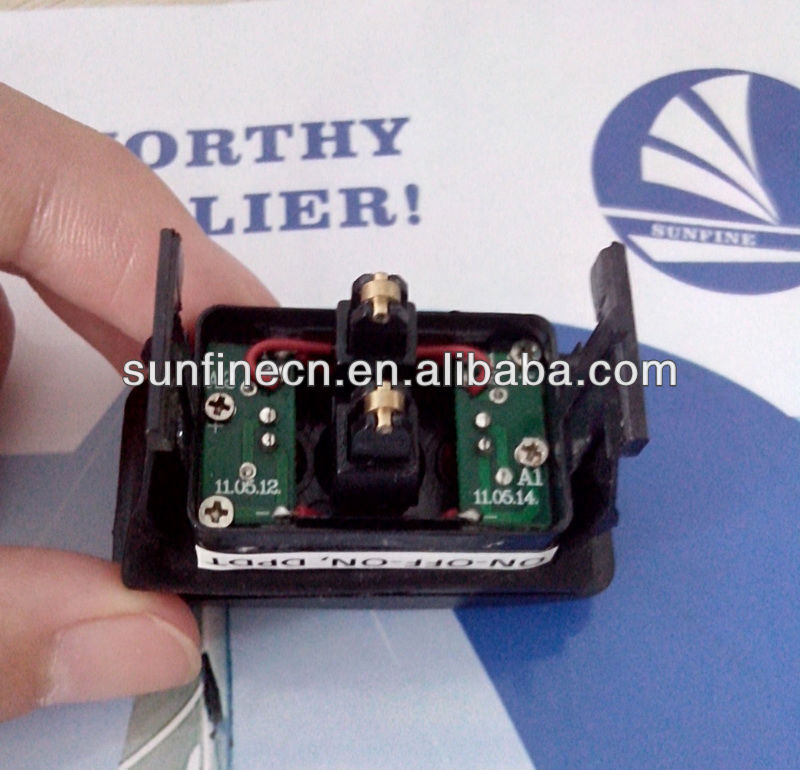

5. high-quality circuit board.
6. support custom switch type, support custom logo.
7. good blister packing and carton packig for protection
Packaging & Shipping

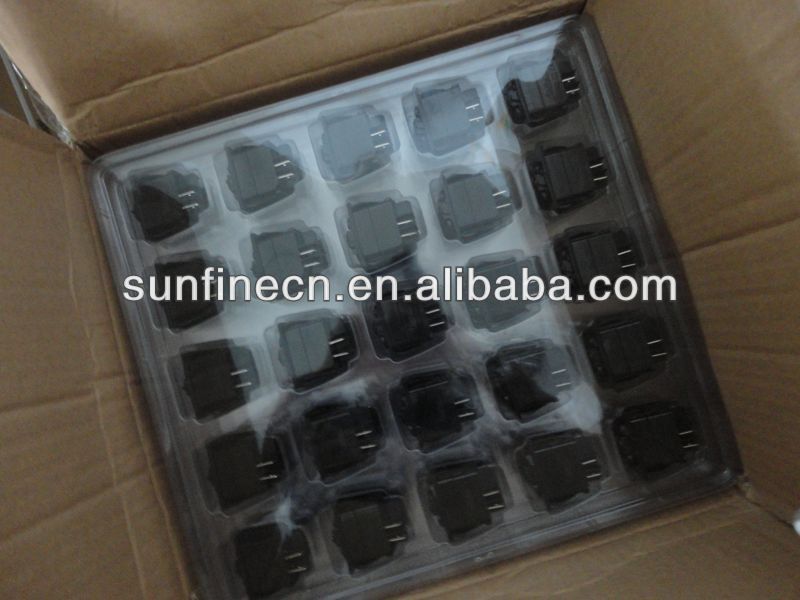

1. Blister packing to protect switch well after long time shipment
2. Delivery time: within 3-10 days after confirming payment
Our Services
1. OEM welcome.
2. Free sample for test qualities ok.
