6 way 12V 24V Waterproof Lighted Rocker Switch Aluminium Panel IP68 White Color
price
USD1.00 - USD30.00 / set
SF50755-6ZW
FOB
1 set
1000set / Month
NINGBO, SHANGHAI
Place of Origin:CN;ZHE
Mechanical Life:10000cycles
Brand Name:SUNFINE
Max. Voltage:DC 24V
Max. Current:20A
Model Number:SF50755-6ZW
LED light color:Red, Blue, Green, Orange, White
Circuit Breaker:5A*3/10A*2/15A*1
Width:114.5mm/4.5''
Height:190.5mm/7.5''
Depth:83mm/3.27''
Mechanical Life:10000cycles
Brand Name:SUNFINE
Max. Voltage:DC 24V
Max. Current:20A
Model Number:SF50755-6ZW
LED light color:Red, Blue, Green, Orange, White
Circuit Breaker:5A*3/10A*2/15A*1
Width:114.5mm/4.5''
Height:190.5mm/7.5''
Depth:83mm/3.27''
Quantity
- Place of Origin:CN;ZHE
- Mechanical Life:10000cycles
- Brand Name:SUNFINE
- Max. Voltage:DC 24V
- Max. Current:20A
- Model Number:SF50755-6ZW
- LED light color:Red, Blue, Green, Orange, White
- Circuit Breaker:5A*3/10A*2/15A*1
- Width:114.5mm/4.5''
- Height:190.5mm/7.5''
- Depth:83mm/3.27''

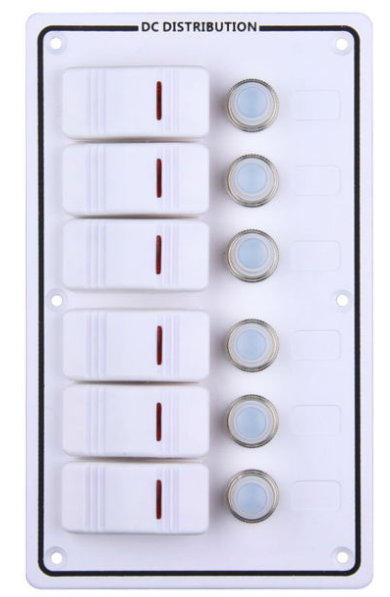

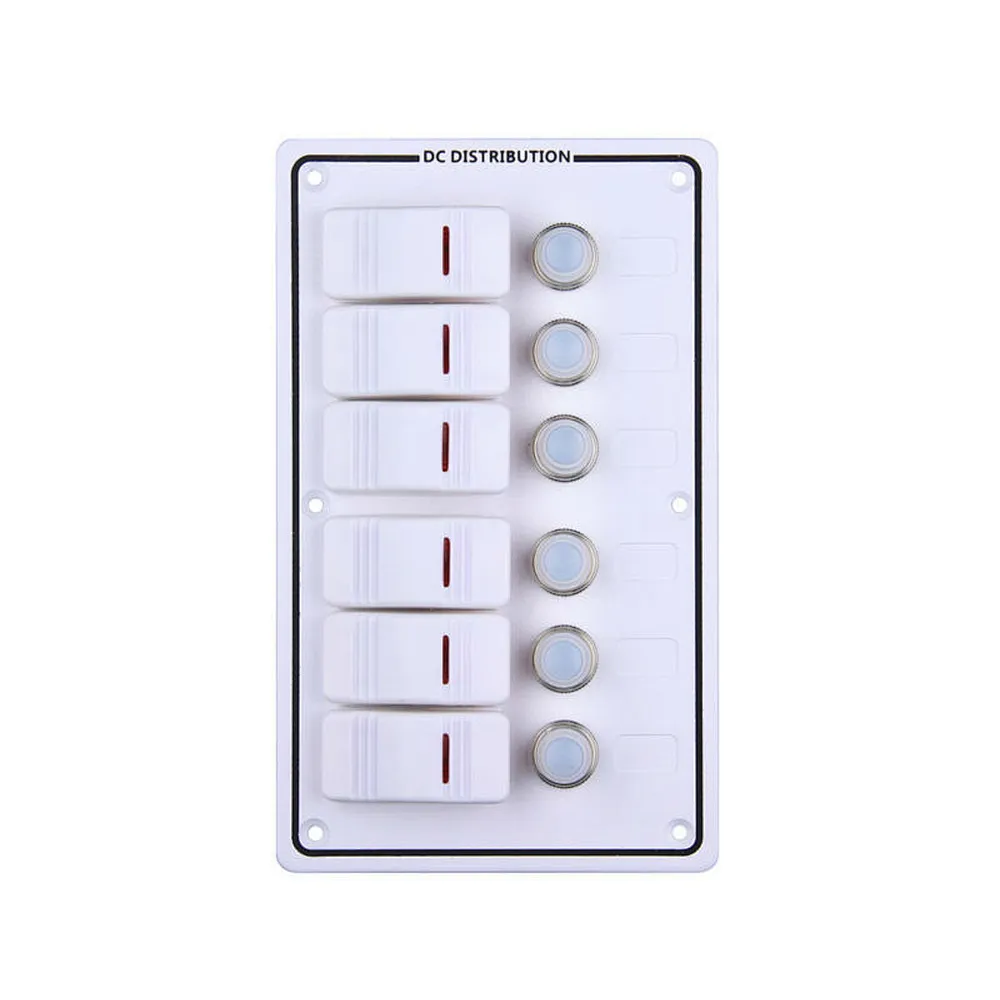

12V / 24V LED Rocker Switch Panel WHITE Aluminium panel IP 68
6 gang switch panel,overload protector switch
6 gang switch panel,overload protector switch
Product Description
1. More models for your choice
2. More specifications for your reference
1) Flammability: UL94 V-2
2) Material of rocker: PC/PA66
3) Contacts: Silver alloy
4) Terminal: Brass
5) Electrical life endurance: 10000 cycles
6) Contact resistance: <20mΩ(initial)
7) Insulation resistance: >1000MΩ (500V DC between open contacts)
8) Dielectric strength: >1500V / minutes
9) Ambient temperature: -10°C~85°C
10) Storage temperature: -10°C~85°C
11) Atmospheric humidity: Max.85%
12) Actuating force: 5~8N (dependent on different switch functions)
rocker light switch
Packaging & Shipping
1. Packing: Blister pack with color card per switch panel
2. Delivery: 3-10 days after confirming payment
Our Services
1. Sticker is free for delivery with switch panel.
2. Welcome your OEM writng label on switch and switch panels.
