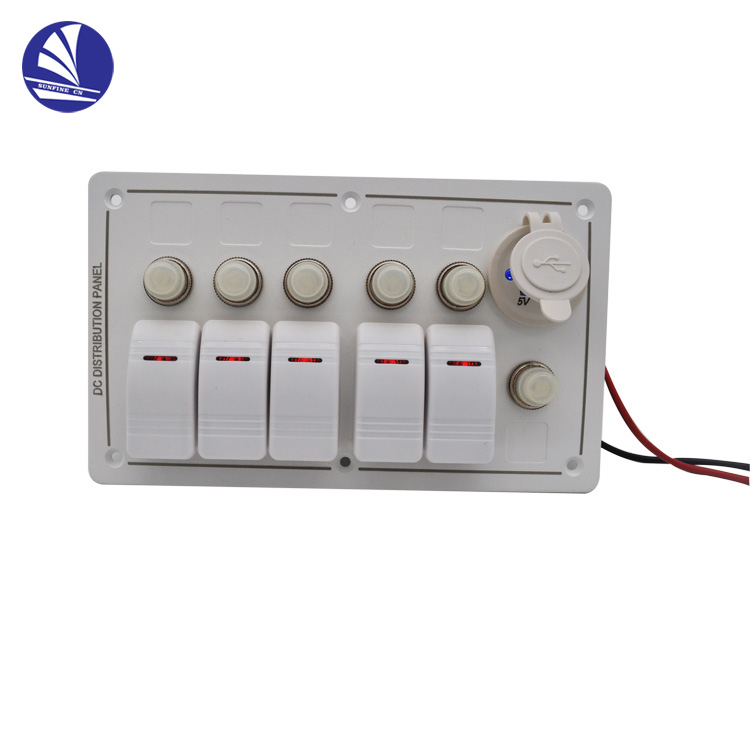

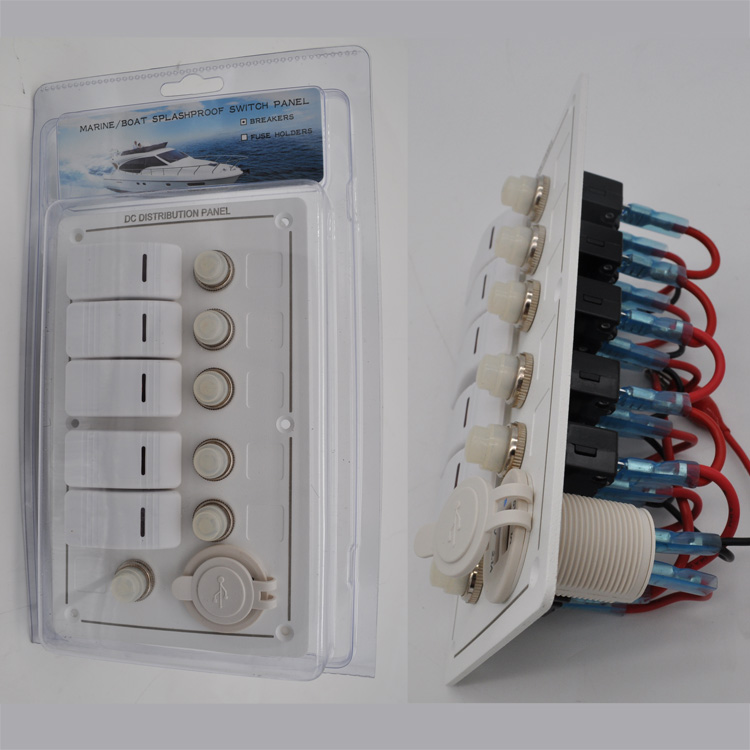

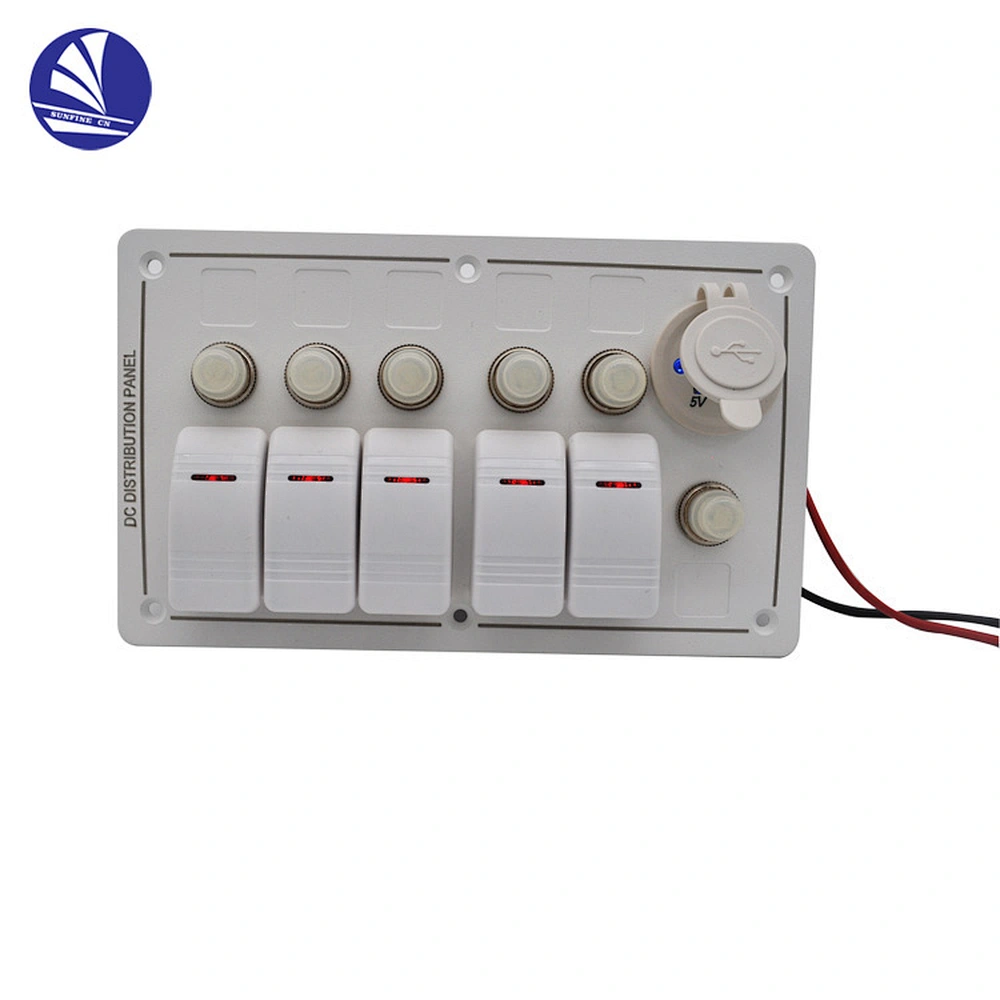

Boat Marine Aluminum 5 Gang Rocker Switch Panel in white
SF50755-5ZUW
FOB
Quantity
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF50755-5ZUW
- Max. Current:20A
- Max. Voltage:24V
- Mechanical Life:10000circles
- Push Botton:Circuit Breakers
- Waterproof:IP68
- Panel Material:Aluminum/ Vertical
- Certificate:CE / UL Approved
- Products Name:White rocker switch panel,boat switch panel
Boat Marine Aluminum 5 gang switch plate in white
Product Description
Rocker Switch Panel 12V / 24V Waterproof IP68, (Aluminum / Vertical / Breakers) / White panel
| Item No. | Circuit Breakers | Size of Panel | Size of Hole | Switch | Accessories | ||||

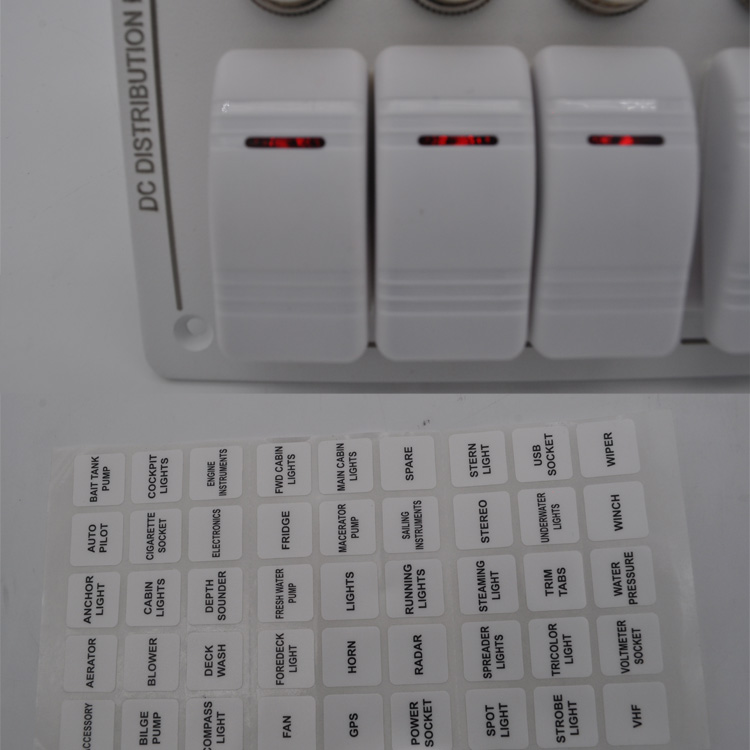

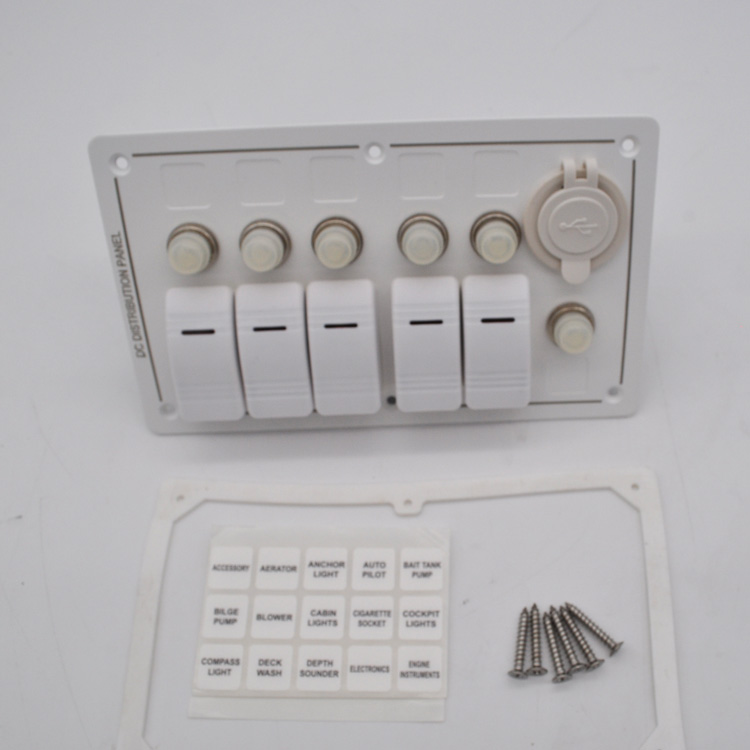

| 5A | 10A | 15A | width mm/in | height mm/in | width mm/in | height mm/in | 1.45 Indication Label 2.Stainless Steel Screw 3.Nitrile Rubber Gasket 2.0mm 4.Electric Wiring UL/1015 | ||
| SF50755-5ZSW | 3 | 2 | 1 | 190.5/7.5 | 114/4.51 | 163/6.42 | 86/3.39 | 5*Switch | Power Socket |
| SF50755-5ZUW | 3 | 2 | 1 | 190.5/7.5 | 114/4.51 | 163/6.42 | 86/3.39 | 5*Switch | 2 Port USB Socket |
| SF50755-5ZCW | 3 | 2 | 1 | 190.5/7.5 | 114/4.51 | 163/6.42 | 86/3.39 | 5*Switch | Cigarette Socket |
| SF50755-5ZVW | 3 | 1 | 1 | 190.5/7.5 | 114/4.51 | 163/6.42 | 86/3.39 | 5*Switch | Voltmeter Socket |
| SF50755-5ZUVW | 3 | 2 | 1 | 240/9.49 | 114/4.51 | 215/8.46 | 86/3.39 | 5*Switch | Voltmeter +2 Port USB Socket |
| SF50755-5ZCVW | 3 | 2 | 1 | 240/9.49 | 114/4.51 | 215/8.46 | 86/3.39 | 5*Switch | Voltmeter + Cigarette Socket |
| SF50755-7ZSW | 4 | 2 | 2 | 240/9.49 | 114/4.51 | 212/8.35 | 86/3.39 | 7*Switch | Power Socket |
| SF50755-7ZUW | 4 | 2 | 2 | 240/9.49 | 114/4.51 | 212/8.35 | 86/3.39 | 7*Switch | 2 Port USB Socket |
| SF50755-7ZCW | 4 | 2 | 2 | 240/9.49 | 114/4.51 | 212/8.35 | 86/3.39 | 7*Switch | Cigarette Socket |
| SF50755-7ZVW | 4 | 2 | 1 | 240/9.49 | 114/4.51 | 212/8.35 | 86/3.39 | 7*Switch | Voltmeter Socket |
