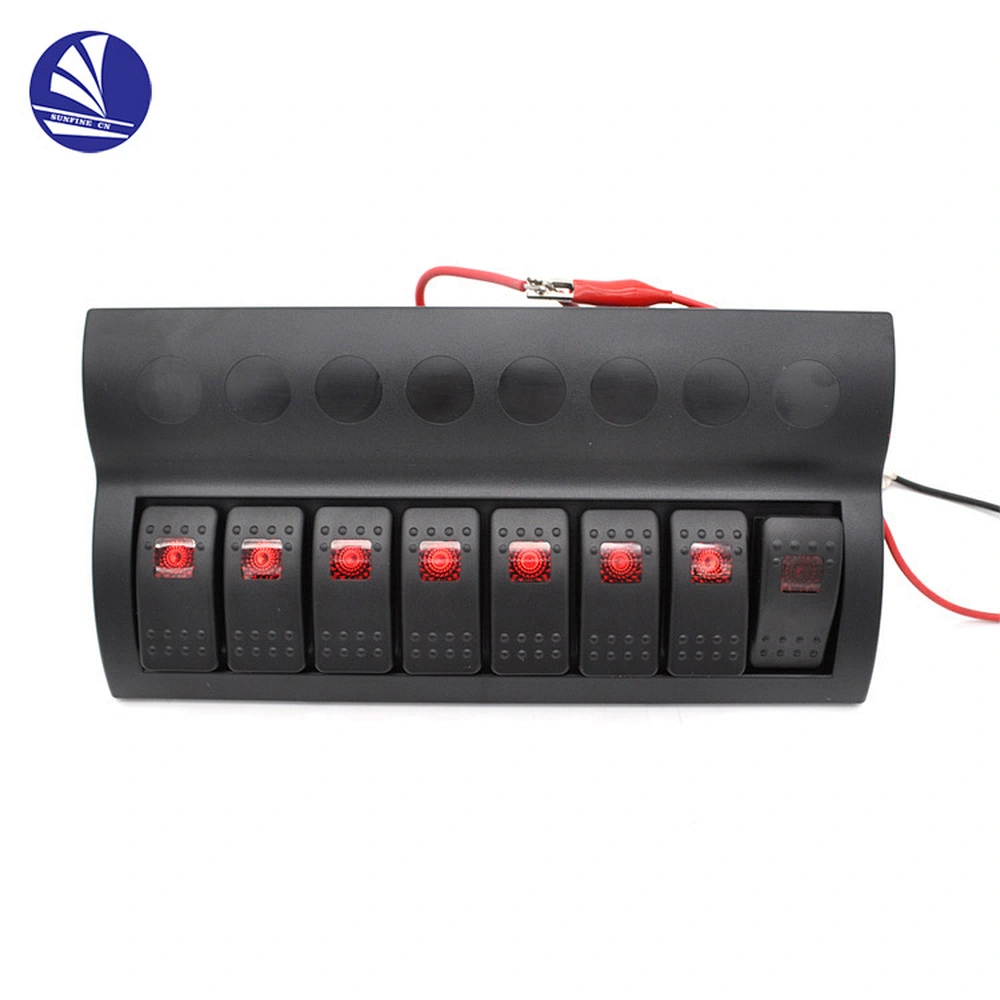

8Gange 12V Waterproof Red Rocker Switch Panel for Car Boat Marine
SF50737-8
FOB
Quantity
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF50737-8
- Max. Current:20A
- Max. Voltage:24V
- Mechanical Life:10000circles
- Push Botton:Fuse Holder
- Rocker Switch:1 Led,ON-OFF
- Waterproof:IP68
- Panel Material:Plastic
- Certificate:CE / UL Approved
8Gange 12V waterproof switch panel rocker switch panel for car Boat Marine
Product Description
waterproof switch panel
rocker switch panel 12V / 24V Waterproof IP68, Rocker Switch 1 RED LED, 3Pin ON-OFF,switch panel for car.
| Item No. | Fuse Holder | Size of Panel | Size of Hole | Switch | Accessories | ||||

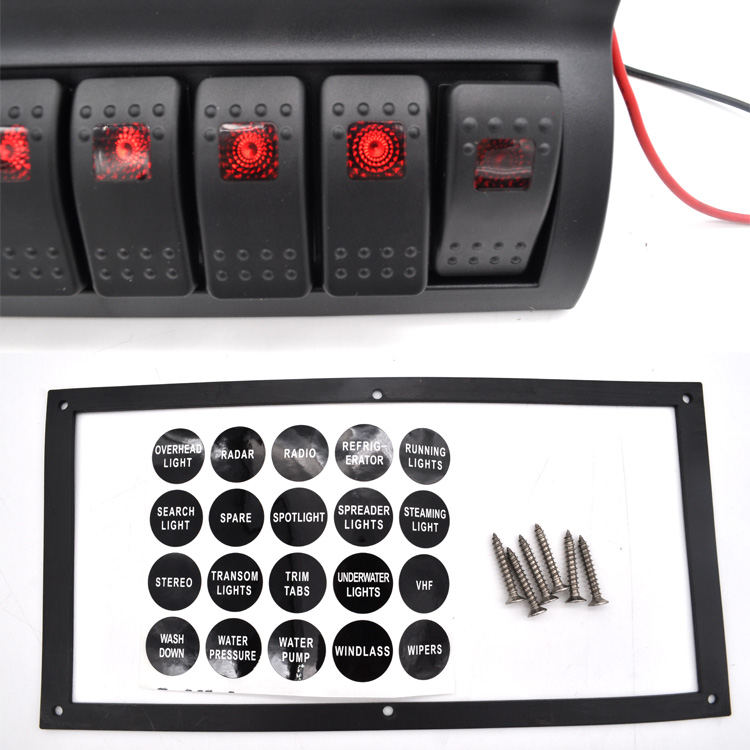

| 5A | 10A | 15A | width mm/inch | height mm/inch | width mm/inch | height mm/inch | Rocker Switch(SF50706-1-3P) 1.40 Indication Label 2.Stainless Steel Screw 3.Nitrile Rubber Gasket 1.2mm 4.Electric Wiring UL/1015 | ||
| SF50737-4 | 2 | 1 | 1 | 120/4.72 | 131/5.16 | 93/3.66 | 104/4.09 | 4*Switch | |
| SF50737-6 | 3 | 2 | 1 | 120/4.72 | 183/7.2 | 93/3.66 | 160/6.3 | 6*Switch | |
| SF50737-8 | 4 | 2 | 2 | 120/4.72 | 235/9.25 | 93/3.66 | 210/8.27 | 8*Switch | |
