ATC/ATO 6-Way Fuse block with Ground, with Protection Cover for Vehicle Car Boat Marine Auto
price
USD4.20 - USD6.65 / pieces
SF51693
FOB
10 pieces
10000pieces / Month
FOB NINGBI
Quantity
- Place of Origin:CN;ZHE
- Type:Fuse Holder
- Brand Name:SUNFINE MARINE
- Model Number:SF51693
- Product Name:fuse terminal block
- Type:6/12 way
- Negatice bar:with/ without
- Label:70 pcs
- Voltage:32V dc max
- Application:ATO, ATC & Automatic reset fuse
- Packing:Standard Package
Product Description

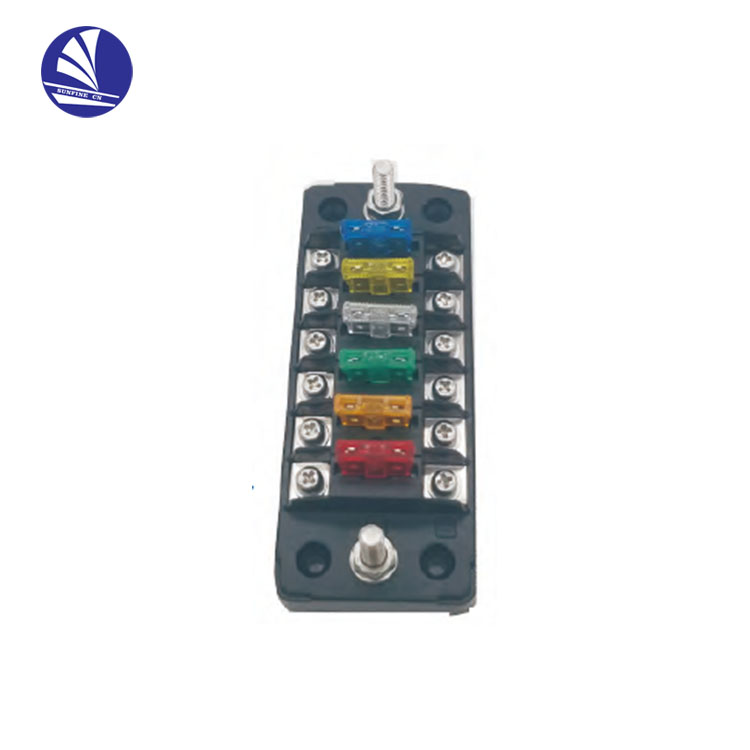

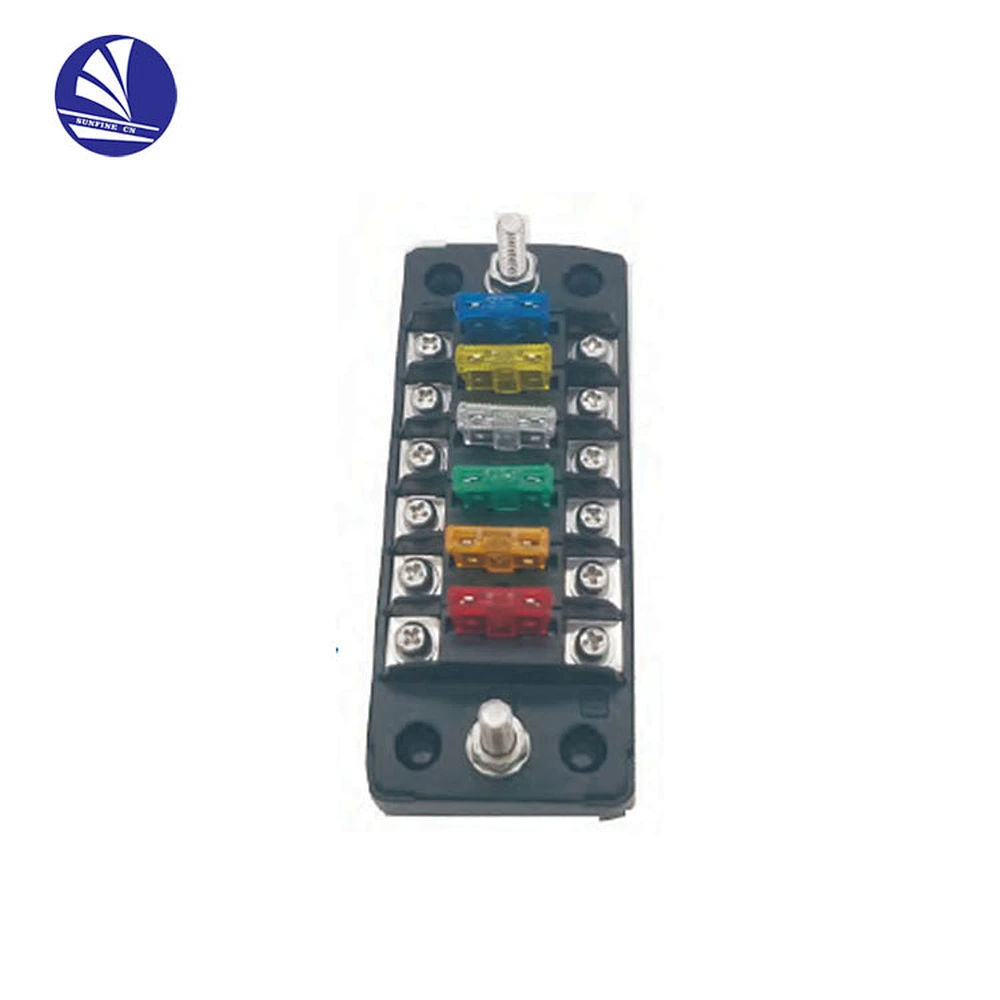

ATC/ATO 6 way fuse block with Ground, fuse block with cover, Bolt Connect Terminals, for Vehicl Car Boat Marine Auto

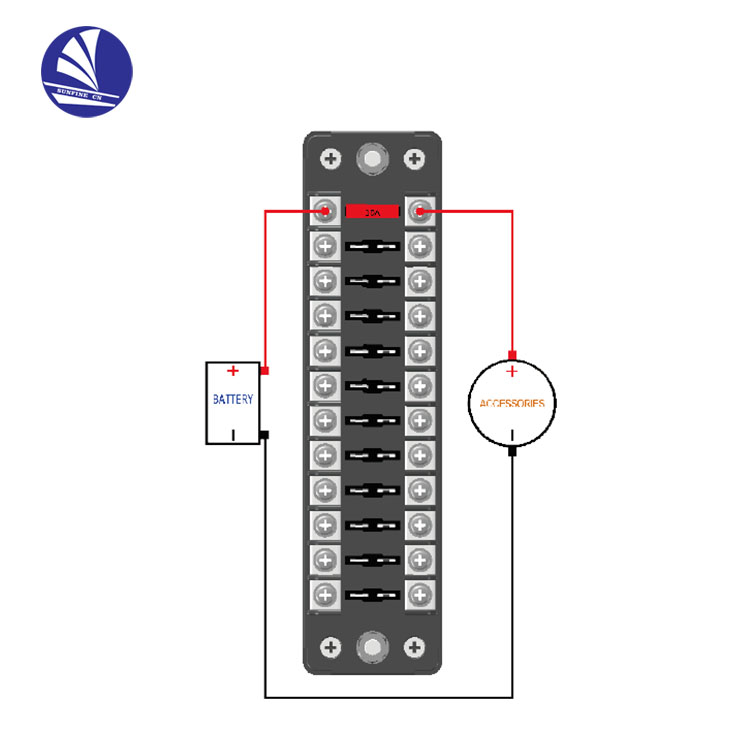

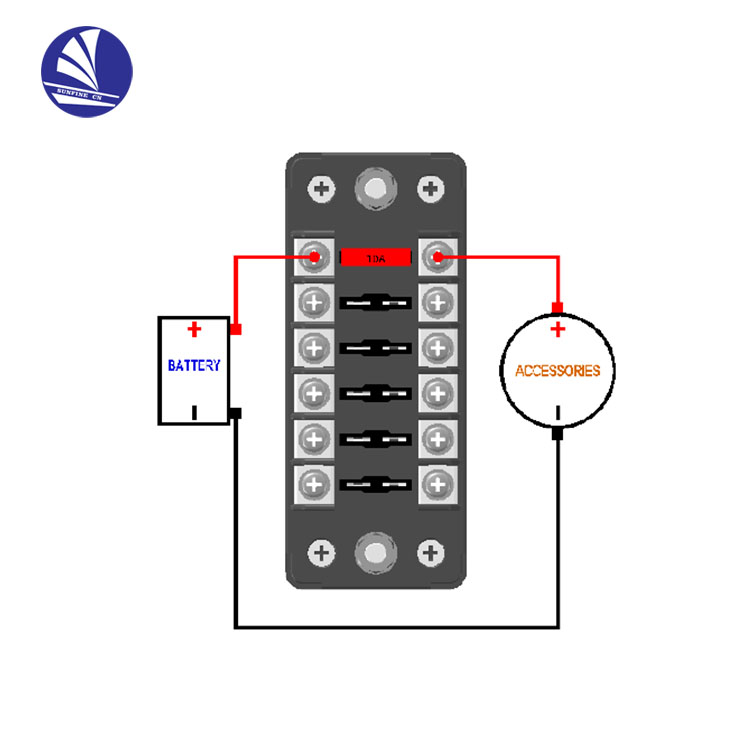

SF51693-6A/12A fuse terminal block

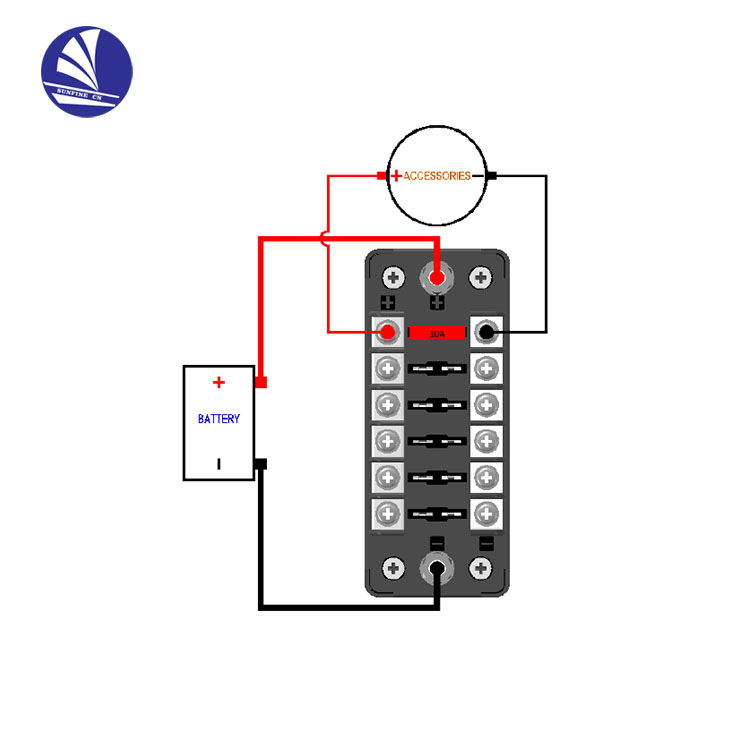

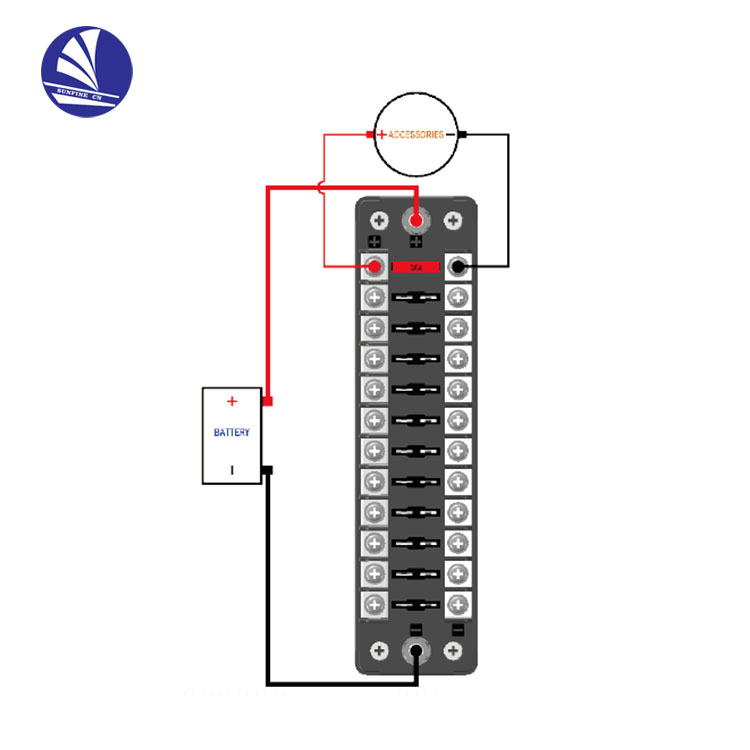

SF51693-6B/12B Fuse block with negative
6 way, 12 way available
* Electrical:
Main line:
Terminal rating: M6 threated studs
(75A 32V DC MAX.)
Single Line:
Terminal rating: M4 threated studs
(20A 32V DC MAX.)
Wire size: #12-16AWG
Accepts ATO or ATC fuse 1A~20A
* Material
Base: PA66
Cap: PC
Terminal: Nickel plated copper
Screw: S.S
Label: 70 pcs
Detailed Images
