Boat Marine Salt Water 12V Washdown Pump Kit
price
USD59.00 - USD63.00 / piece
FOB
1 piece
1000piece / Month
NINGBO, SHANGHAI
Quantity
- Certification:CE
- Rated Current:16 - 21A

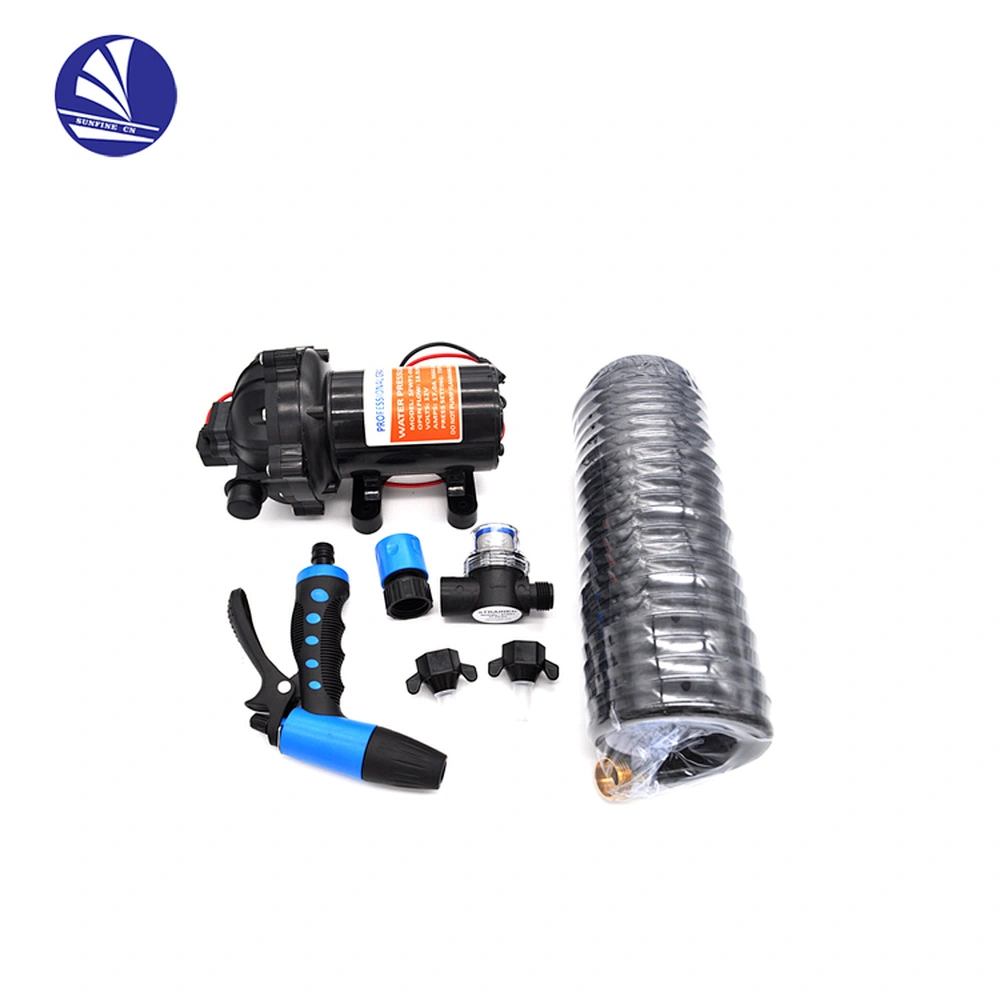

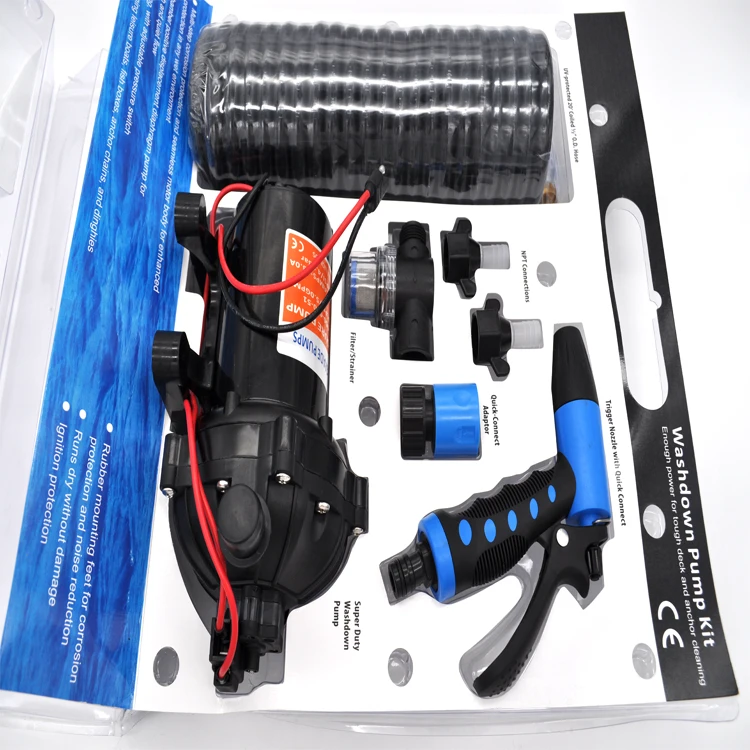

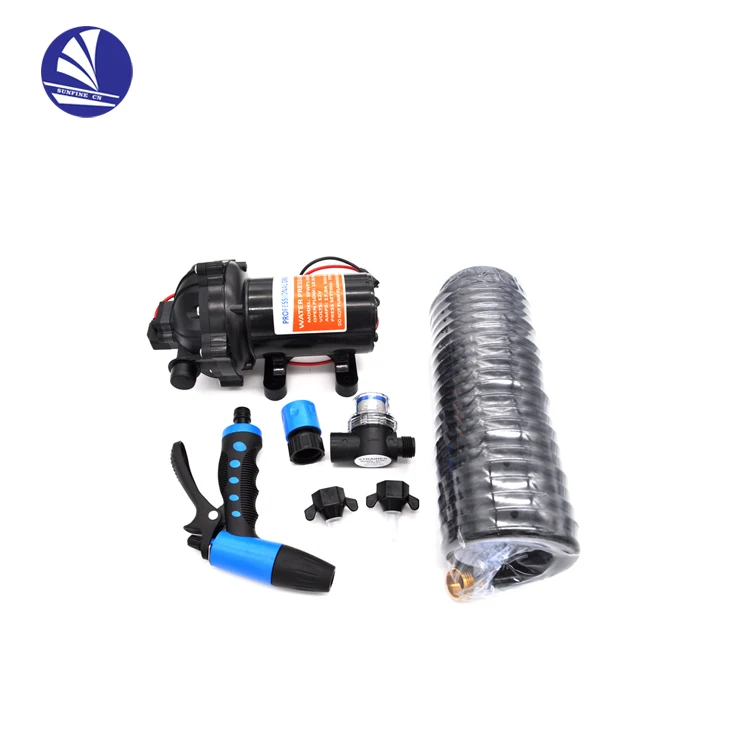

Boat Marine Salt Water 12V Washdown Pump Kit
Product Description
* Positive displacement pump, can run dry Quiet operation
* Demand pump, easy connect fitting, ignition protected, industry standard mount pattern
* Type: 3 or 5 chamber positive displacement ddiaphragmpump, self priming, capable of being run by
* Liquid Temperature: 140° F (43°C)max
* Priming Capability: 6feet (1.8m)suction lift
* Motor: Duty cycle intermitent
* Leads: 16AWG 4.5"long with 2-pin connector / leads
* Standard Pump Configuration
* Type: 3 or 5 chamber positive displacement ddiaphragmpump, self priming, capable of being run by
* Liquid Temperature: 140° F (43°C)max
* Priming Capability: 6feet (1.8m)suction lift
* Motor: Duty cycle intermitent
* Leads: 16AWG 4.5"long with 2-pin connector / leads
* Standard Pump Configuration
| Item No. | Voltage | Max Draw | GPM / LPM | PSI / BAR | Switch | Valves | Diaphragm | Inlet / Outlet Ports | Wire |
| SF50170-101 | 12V | 18A | 5.0 /18.9 | 70 /4.8 | Demand | EPDM | Santoprene | 1/2"-14 MNPT | Connections |
| SF50170-102 | 24V | 9A | 5.0 /18.9 | 70 /4.8 | Demand | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin / Lead |
| SF50170-201 | 12V | 12A | 3.0 /11.6 | 70 /4.8 | Demand | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin / Lead |
| SF50170-202 | 24V | 6A | 3.0 /11.6 | 70 /4.8 | Demand | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin / Lead |
Detailed Images
