Hydrule Plastic drain sockets /marine fittings for boat and yacht
price
USD1.00 - USD2.00 / pieces
SF20304
FOB
20 pieces
10000000pieces / Month
NINGBO
Quantity
- marine fittings,drain plug
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
SWITCH PANEL

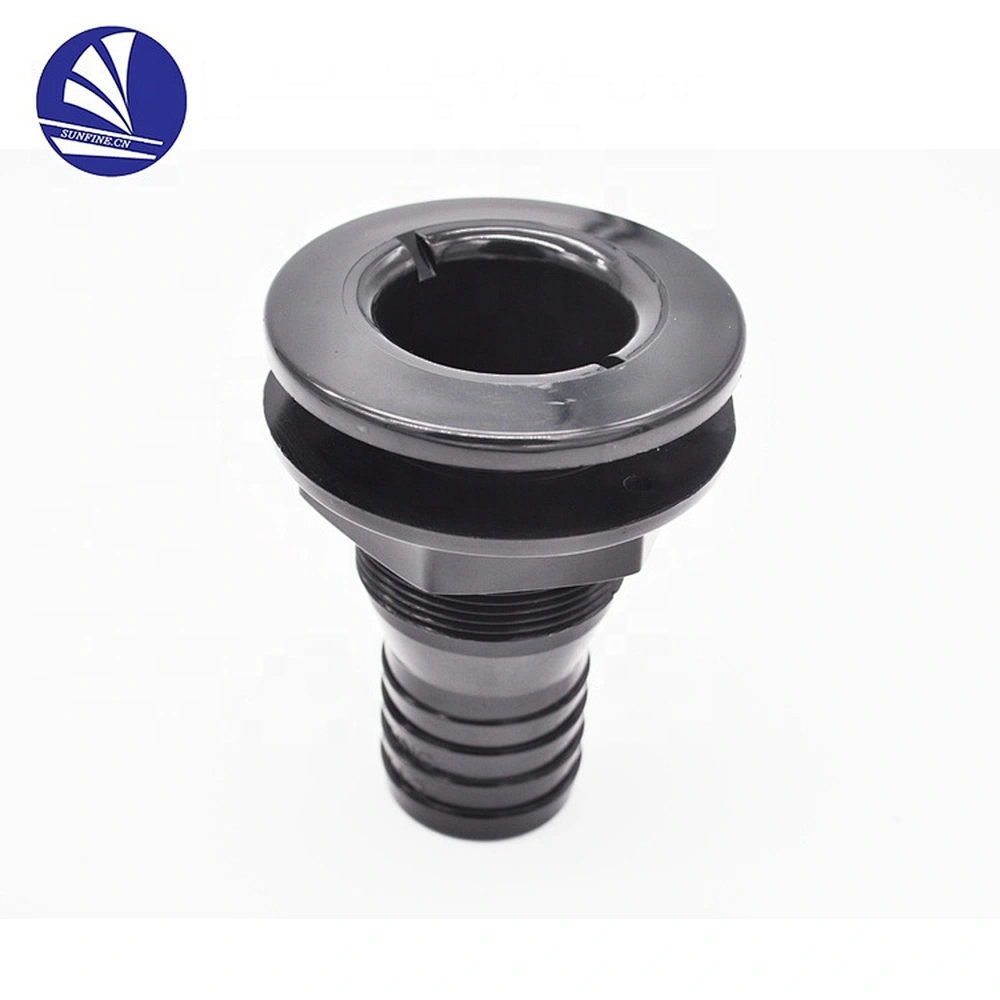

marine fittings,drain plug
| Plastic drain sockets | ||||||||
| Model | Size inch | H(mm) | D(mm) | D1(mm) | d(mm) | d1(mm) | di(mm) | Color |
| SF20304-11 | 5/8'' | 73.5 | 42 | 17 | 23.5 | 16 | 10 | white |
| SF20304-12 | 5/8'' | 73.5 | 42 | 17 | 23.5 | 16 | 10 | black |
| SF20304-21 | 3/4'' | 80 | 50.5 | 19 | 27 | 19 | 11.5 | white |
| SF20304-22 | 3/4'' | 80 | 50.5 | 19 | 27 | 19 | 11.5 | black |
| SF20304-31 | 1'' | 93 | 61 | 26 | 33 | 25.5 | 18 | white |
| SF20304-32 | 1'' | 93 | 61 | 26 | 33 | 25.5 | 18 | black |
| SF20304-41 | 1-1/4'' | 97 | 67 | 33 | 41 | 32 | 24 | white |
| SF20304-42 | 1-1/4'' | 97 | 67 | 33 | 41 | 32 | 24 | black |
| SF20304-51 | 1-1/2'' | 102 | 75 | 47 | 46.5 | 38.5 | 28 | white |
| SF20304-52 | 1-1/2'' | 102 | 75 | 47 | 46.5 | 38.5 | 28 | black |
Detailed Images
