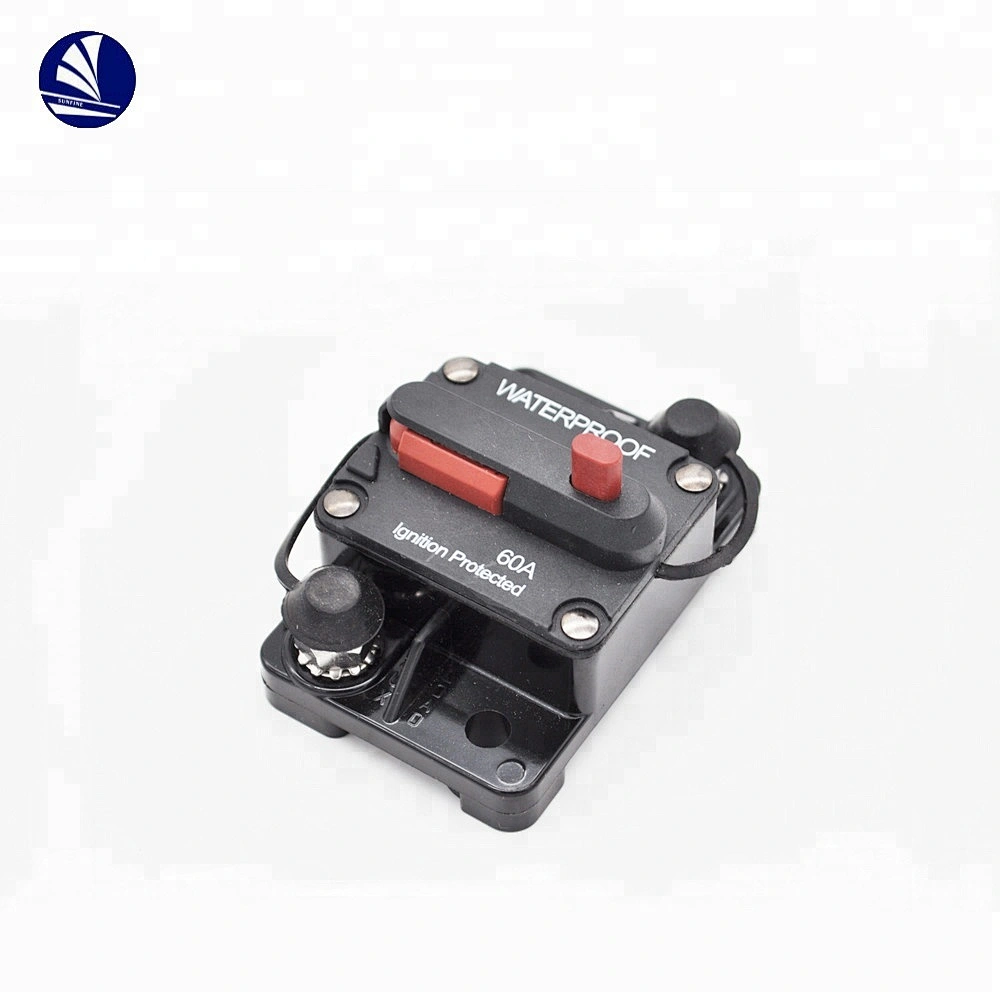

Marine Boat/Car Waterproof High-Amp Thermal Fuse Block Circuit Breakers Box Automotive
SF50650-91
FOB
Quantity
- Place of Origin:CN;ZHE
- Type:Thermo Switch Breaker,circuit breakers
- Brand Name:SUNFINE
- Model Number:SF50650-91
- Car Make:Universal
- Warranty:1
- Product Name:circuit breakers
- Usage:Boat/Car
- Mounting:Surface mount
- Number of Poles:Single poles,normal closed
- Maximun Current:60A/80A/100A
- Packing:Standard Packing
- Functions:Thermal Trip,Manual reset
- Termination:1/4''-28 Studs
- IP Protection:IP67
- Max Interrupting Capacity:3000A 30 VDC
Product Description
Please write down the amp. (60A,80A or 100 A) you need when u place this order or contact us.
circuit breakers
Waterproof High-Amp Thermal Fuse Block circuit breakers Box Automotive,circuit breaker amp
Compliance: SAE J1625,ABYC E-11;CE;SAE J117
IP Protection:IP67
Calibration at 25! :100% Hold,135% Trip
Max Interrupting Capacity:3000A 30 VDC
| SF.NO | Mount | Function Type | Number of Poles | Maximun Current&Volt Ratings | Termination |
SF50650-91 (60A) | Surface Mount | Thermal Trip, Manual ON-OFF | Single poles, Single through | 20-150A, 48V DC | 1/4''-28 Studs |
SF50650-91 (80A) | |||||
SF50650-91 (100A) |
More Details
Detailed Images
