Marine boat Hydraulic Steering Gear System 90HP-150HP-300HP with oil and 8m pipe
price
USD286.00 - USD350.00 / set
FOB
1 set
1000set / Month
Ningbo
Quantity
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Car Model:all
- OE NO.:SF80722-3
- Warranty:1YEAR
Product Description

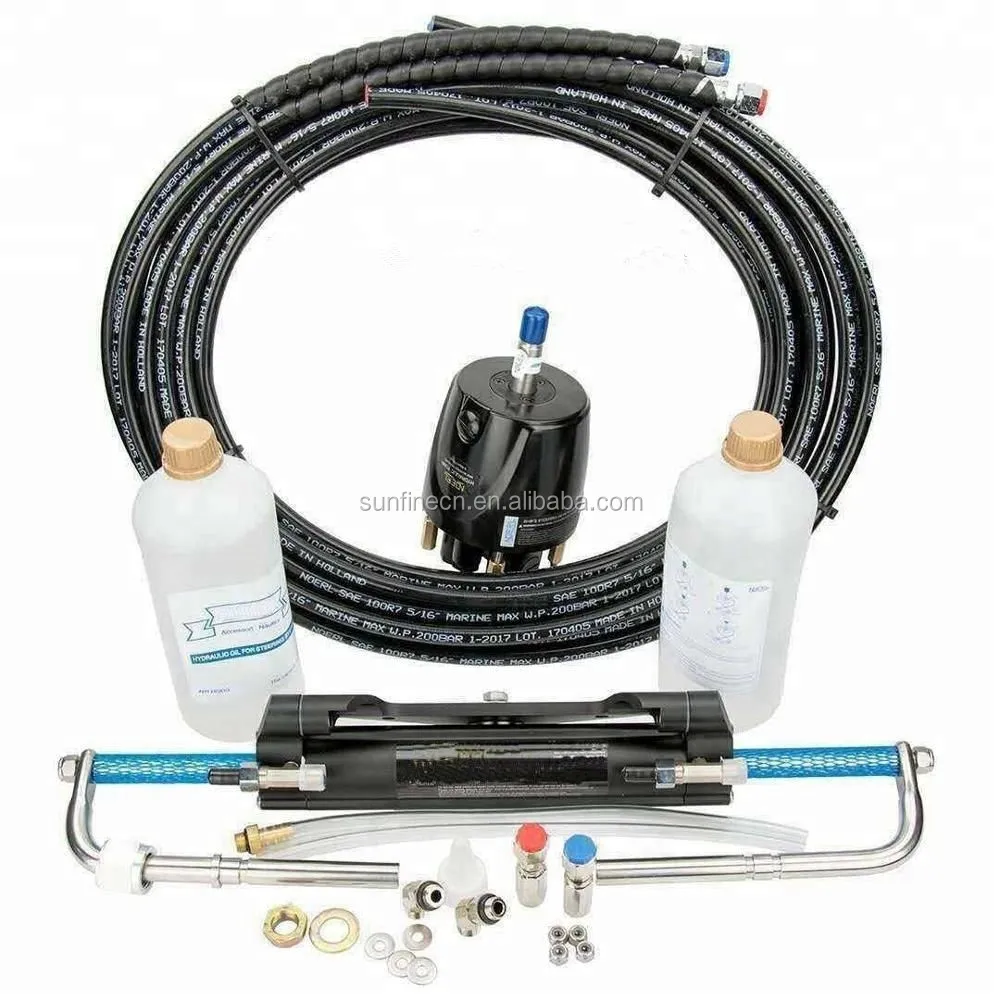

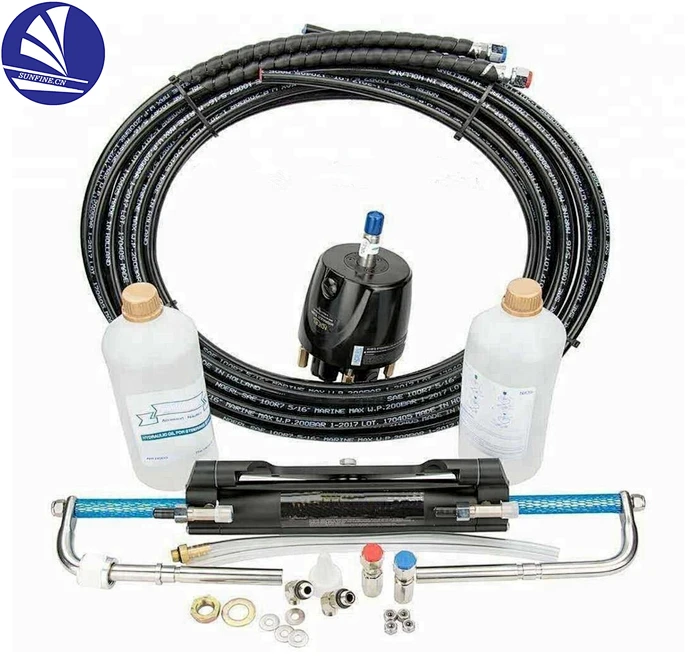

*Hydraulic Steering Gear System:
*Hydraulic Steering Wheel
*Compact design
*Front Mounting
*Ball bearing piston race, 7 pistions
*In Built lock valve (70bar) for positive rudder lock
*3/4 tapered stainless steel shaft, solid stainless steel helm shaft for optimum strength and durability;
*Cast iron cylinder rotor for greater durability and longer life.
*1/4NPT fitting for 3/8 tube
*Wheel size within 500mm is available for this model
*Displacement size 33cc-2.0cu.in
Cylinder Specification:
*Volume: 137cc / 8.4cu.in
*Output force: 470kg / 1036lbs
*Inside diameter: 35mm / 1-3/8''
*Bore shaft length: 550mm / 21.6''
*Stroke: 204mm / 8''

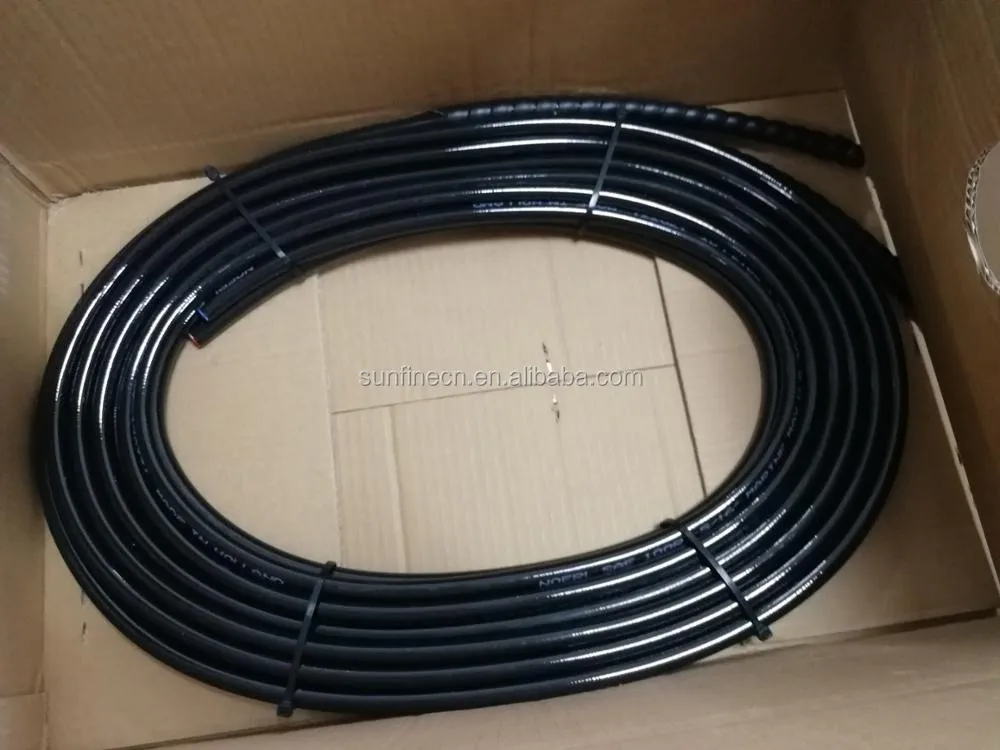

*3/8''(9.5mm) Fittings for highpressure Flex nylon hose
*Other Model and Motor ph are available to provide according to your require.
*Hydraulic Steering Wheel
*Compact design
*Front Mounting
*Ball bearing piston race, 7 pistions
*In Built lock valve (70bar) for positive rudder lock
*3/4 tapered stainless steel shaft, solid stainless steel helm shaft for optimum strength and durability;
*Cast iron cylinder rotor for greater durability and longer life.
*1/4NPT fitting for 3/8 tube
*Wheel size within 500mm is available for this model
*Displacement size 33cc-2.0cu.in
Cylinder Specification:
*Volume: 137cc / 8.4cu.in
*Output force: 470kg / 1036lbs
*Inside diameter: 35mm / 1-3/8''
*Bore shaft length: 550mm / 21.6''
*Stroke: 204mm / 8''
*3/8''(9.5mm) Fittings for highpressure Flex nylon hose
*Other Model and Motor ph are available to provide according to your require.

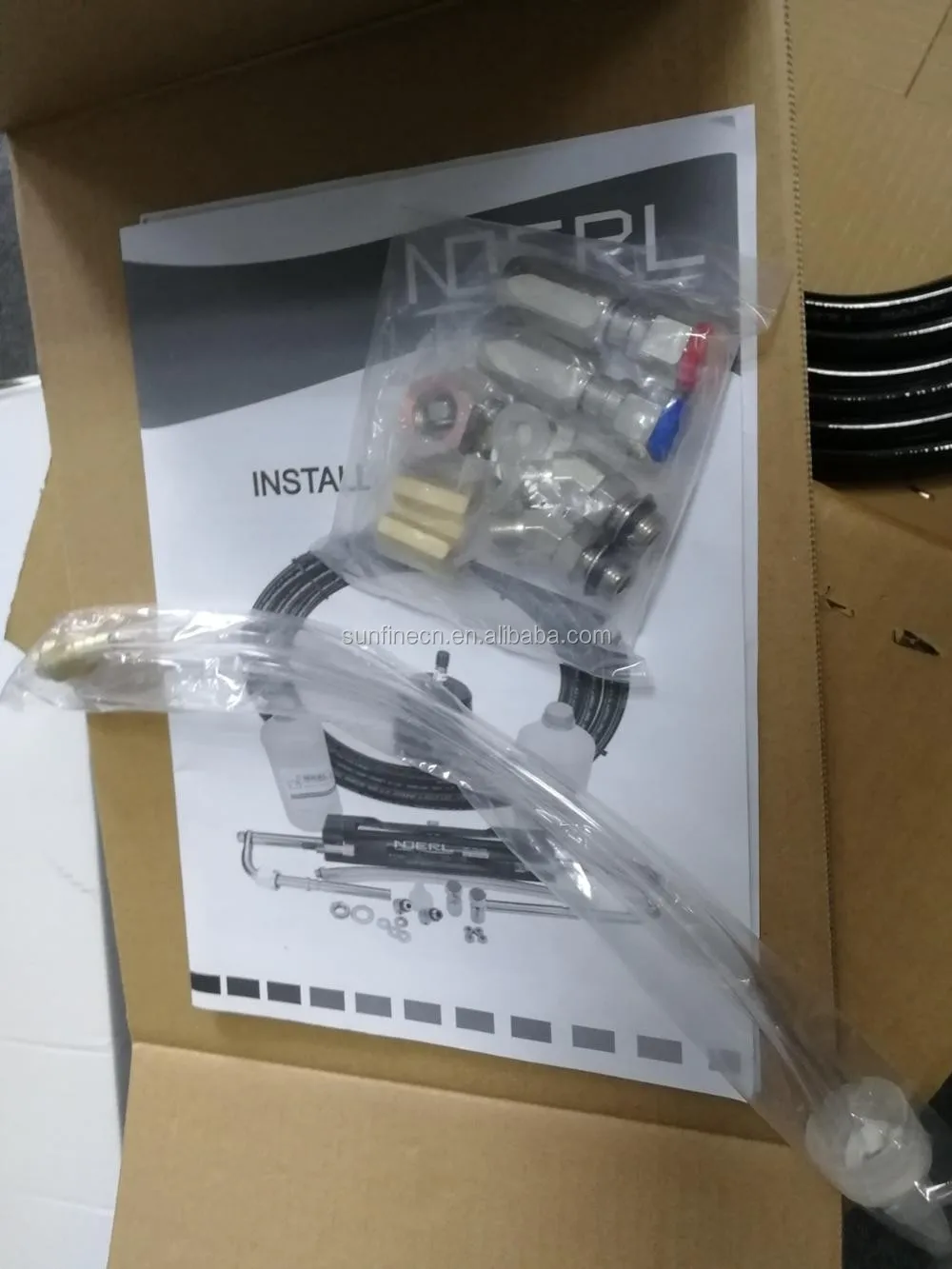

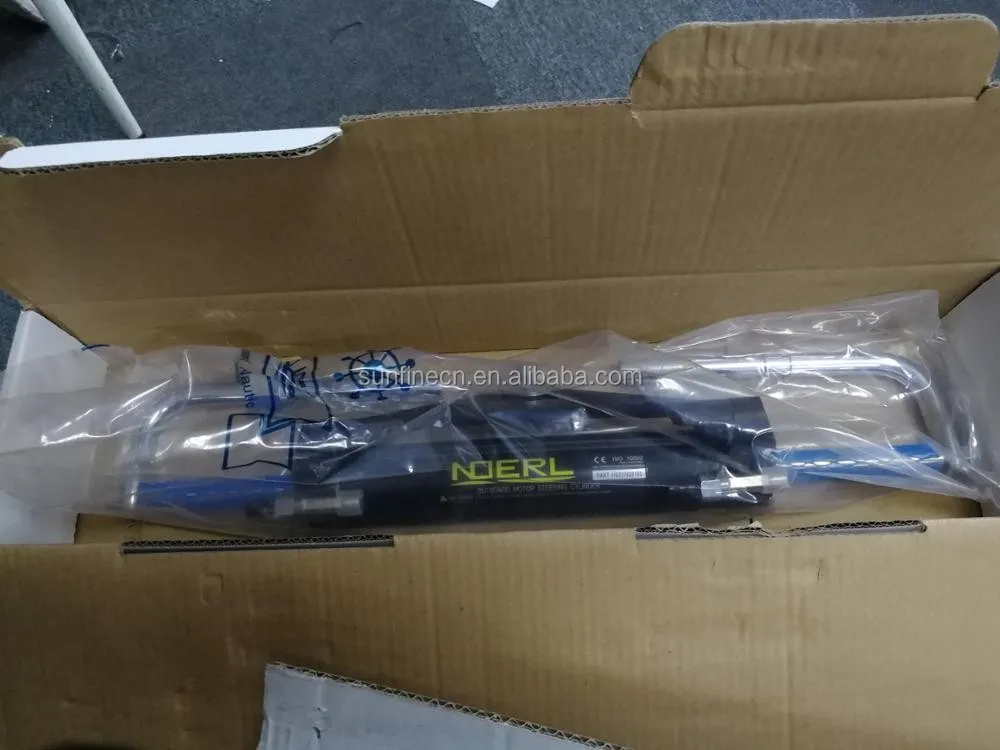

Detailed Images
Related Products
SF80712 Planetary Mechanical Steering
* Designed and developed especially for marine use.
* Mainly applied in mechanical/manual steering for yachts, fishing boats and other waterborne vehicles.
* Made in zinc alloy, corrosion resistant, ergonomically designed, easy to install, compact for mounting.
* Combined with steering cable series 160, end C, all stainless steel cable output ends
* With cable 6m.
* For use with marine outboard engines up to 60hp.
