USD1.00 - USD30.00 / piece
- Place of Origin:CN;ZHE
- Model Number:SF50752
- Brand Name:SUNFINE
- Max. Current:20A
- Mechanical Life:10000circles
- Max. Voltage:24V
- LED LIGHT Color:Blue, Orange, Red, Green, White
- Push Button Circuit Breakers:5A*3/ 10A*2/ 15A*1
- Width:114.5mm/ 4.5''
- Height:240mm/9.45''
- Depth:83mm/3.27''

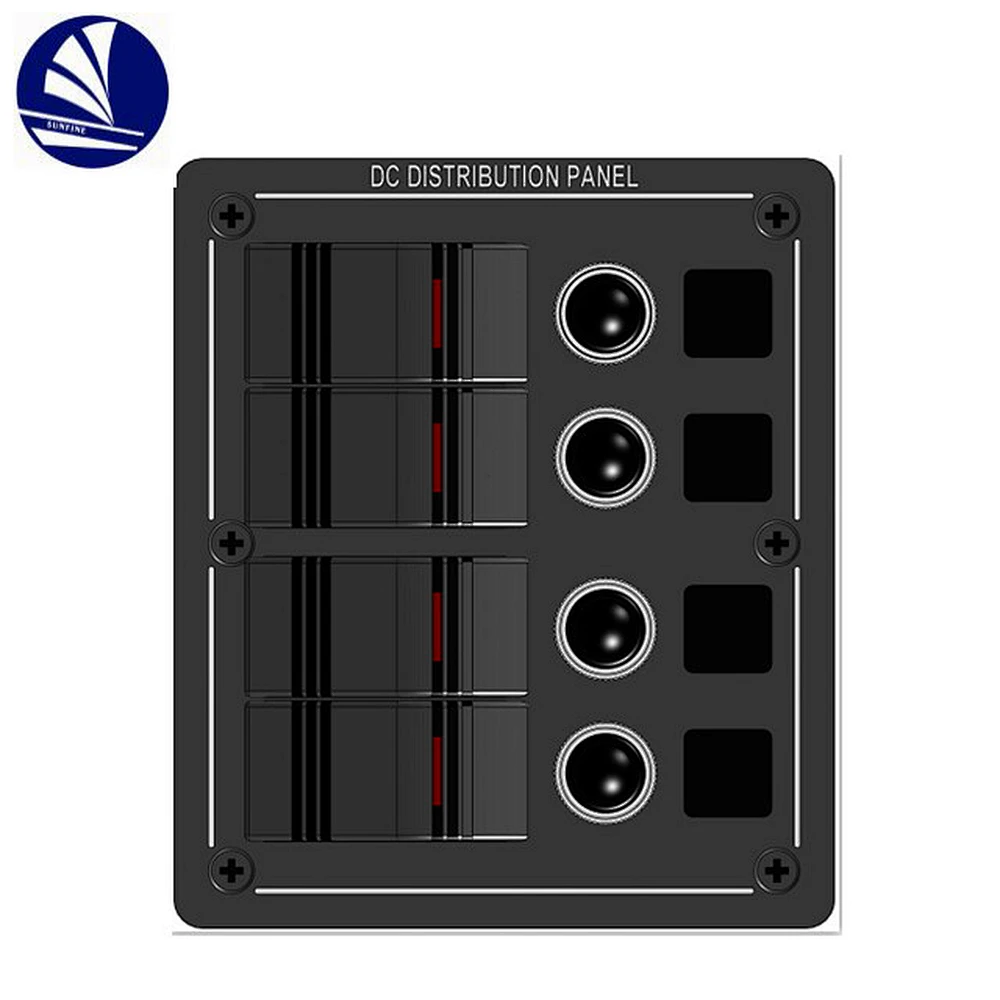

12V / 24V Waterproof LED Rocker Switch Panel Black Aluminium panel IP68

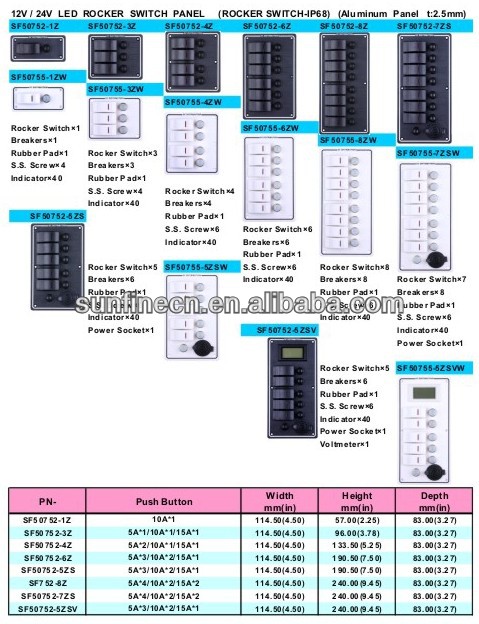

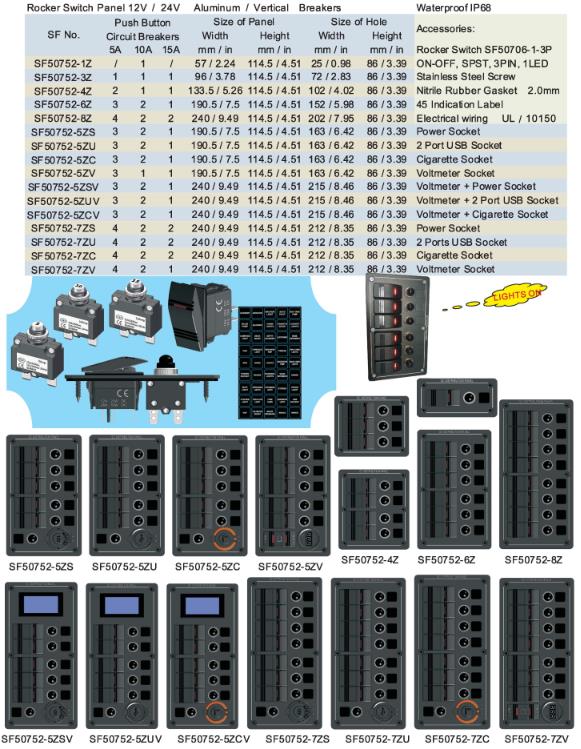

1. More models for your choice
1) Flammability: UL94 V-2
2) Material of rocker: PC/PA66
3) Contacts: Silver alloy
4) Terminal: Brass
5) Electrical life endurance: 10000 cycles
6) Contact resistance: <20mΩ(initial)
7) Insulation resistance: >1000MΩ (500V DC between open contacts)
8) Dielectric strength: >1500V / minutes
9) Ambient temperature: -10°C~85°C
10) Storage temperature: -10°C~85°C
11) Atmospheric humidity: Max.85%
12) Actuating force: 5~8N (dependent on different switch functions)

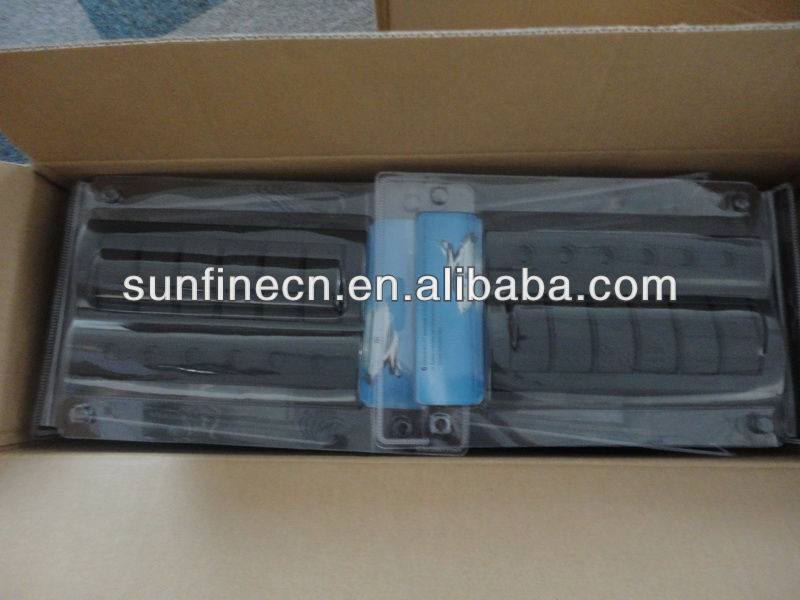

1. Packing: Blister pack with color card, same as above
2. Delivery: 3-10 days after confirming payment
1. Sticker is free for delivery with switch panel.
2. Welcome your OEM writng label on switch and switch panels
