Aluminium Boat/Car 3 GANG/ 6 GANG WATERPROOF 12V/24V ROCKER SWITCH PANEL WITH LED LIGHT Socket Voltmeter USB
price
USD12.00 - USD28.00 / sets
SF50803
FOB
50 sets
10000sets / Month
ningbo
Quantity
- Type:Combination Switch
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF50803
- Car Make:Universal
- Warranty:1
- Product Name:rocker switch panel
- Packing:Standard Packing
- Color:Red Light/Blue Light
- Quality:100%tested
- Application:Boat/Car
- Voltage:12V/24V
- Advantage:Guaranted
- Switch type:Rocker Switch,automotive rocker switches
- Feature:Waterproof，12v rocker switch
Product Description
Marine Boat Car 3 GANG/ 6 GANG WATERPROOF 12V/24V rocker switch panel WITH LED LIGHT
| SF NO. | Fuse Holders 15A | Rocker Switch 2Blue LED,5Pin ON-OFF | Specification | Size of Panel Width Height | Size of Hole Width Height | Accessories:Indication Label;Stainless Steel Screw;Nitrile Rubber Gasket 2.0mm;Electrical wiring (UL/ 1015) | ||
| mm mm | mm mm | |||||||

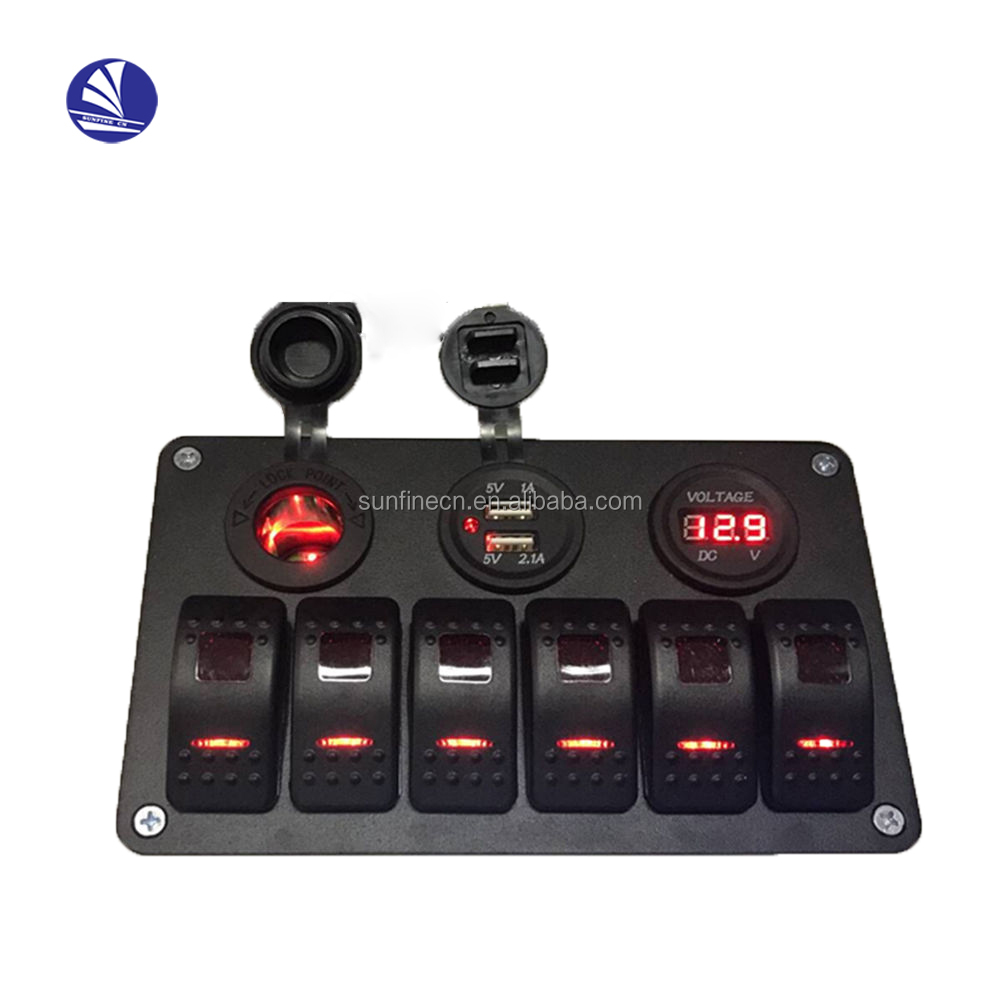

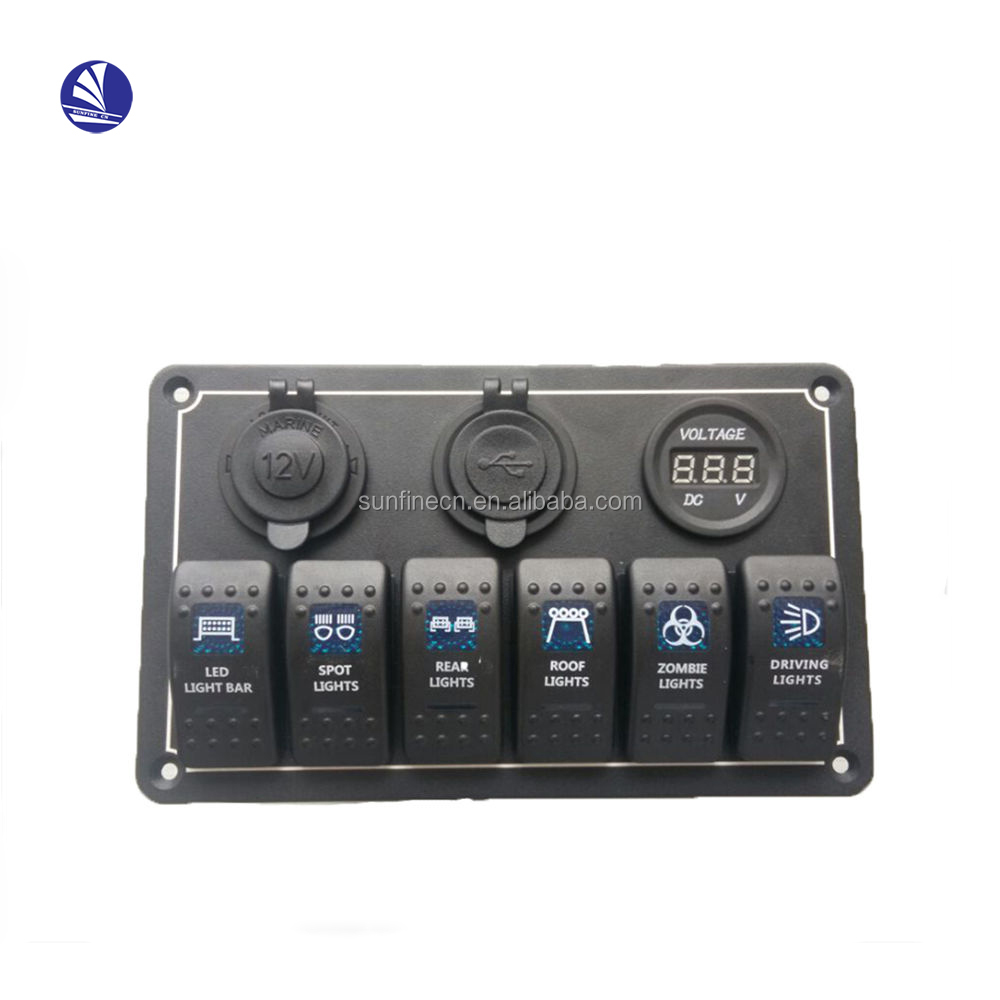

| SF50803-6H2P1U1V | 3 | 6xSwitch | Power Socket with LED+2PORT 3.1A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |
| SF50803-6H1P1U1V | 3 | 6xSwitch | Power Socket +2PORT 3.1A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |
| SF50803-6H2P3U1V | 3 | 6xSwitch | Power Socket with LED+2PORT 4.8A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |

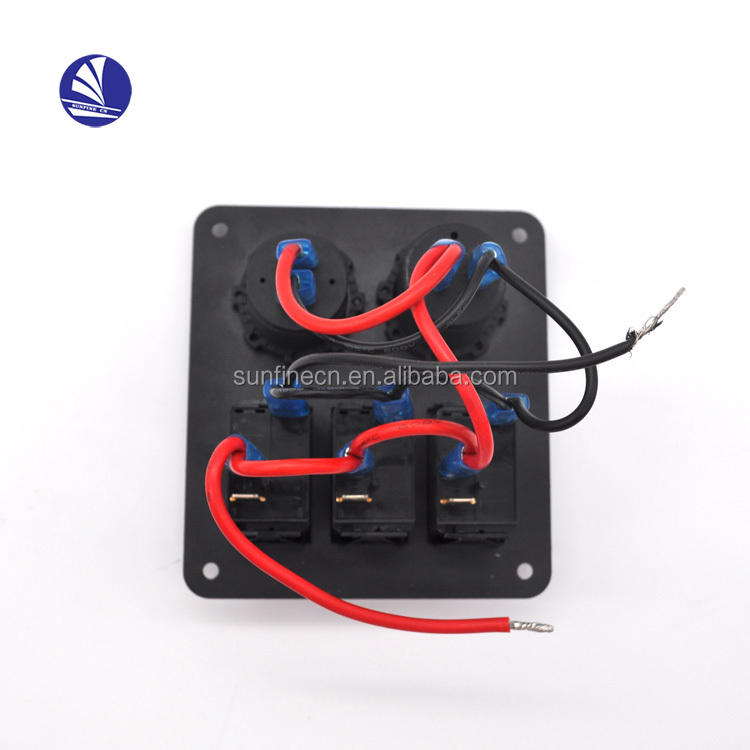

| SF50803-3H2P1U | 2 | 3xSwitch | Power Socket with LED+2PORT 3.1A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H1P1U | 2 | 3xSwitch | Power Socket +2PORT 3.1A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H2P3U | 2 | 3xSwitch | Power Socket with LED+2PORT 4.8A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H2P4U | 2 | 3xSwitch | Power Socket with LED+2PORT 4.2A USB&Volt | 100 | 110 | 76 | 90 | |

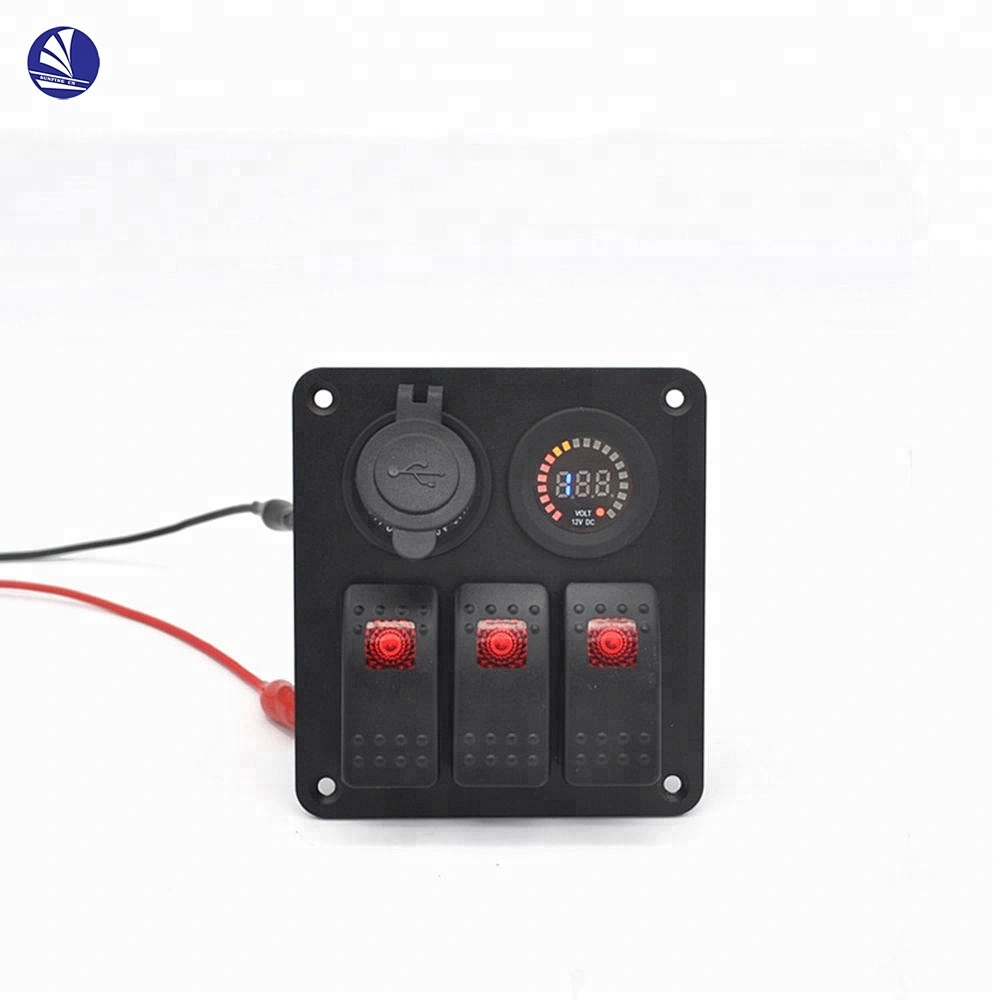

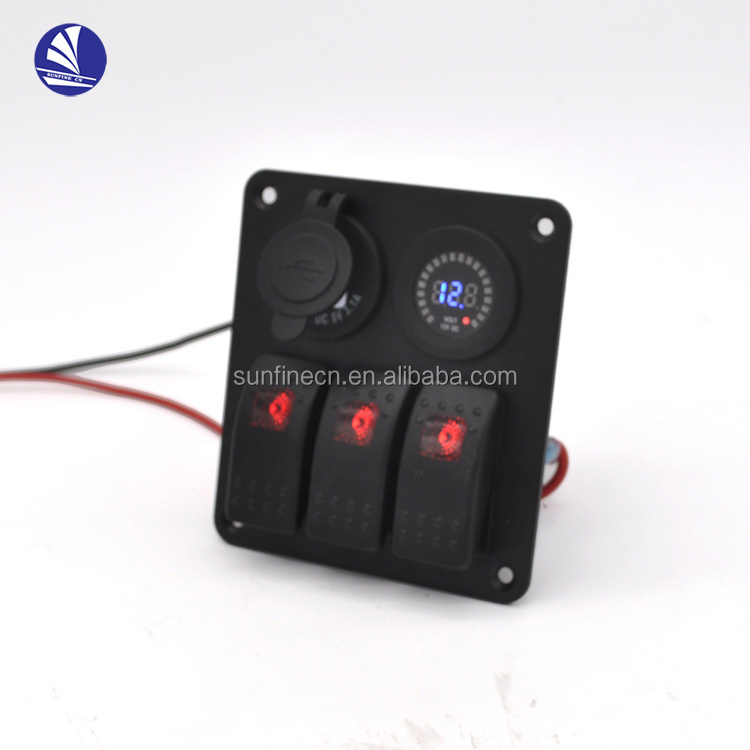

| SF50803-3H2P2V | 2 | 3xSwitch | Power Socket with LED+12V color display Voltmeter | 100 | 110 | 76 | 90 | |
| SF NO. | Fuse Holders 15A | Rocker Switch 2Blue LED,5Pin ON-OFF | Specification | Size of Panel Width Height | Size of Hole Width Height | NO FUSE | ||
| mm mm | mm mm | |||||||
| SF50803-6H2P1U1V | / | 6xSwitch | Power Socket with LED+2PORT 3.1A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |
| SF50803-6H1P1U1V | / | 6xSwitch | Power Socket +2PORT 3.1A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |
| SF50803-6H2P3U1V | / | 6xSwitch | Power Socket with LED+2PORT 4.8A USB+blue LED voltmeter | 180 | 110 | 165 | 95 | |
| SF50803-3H2P1U | / | 3xSwitch | Power Socket with LED+2PORT 3.1A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H1P1U | / | 3xSwitch | Power Socket +2PORT 3.1A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H2P3U | / | 3xSwitch | Power Socket with LED+2PORT 4.8A USB | 100 | 110 | 76 | 90 | |
| SF50803-3H2P4U | 2 | 3xSwitch | Power Socket with LED+2PORT 4.2A USB&Volt | 100 | 110 | 76 | 90 | |
| SF50803-3H2P2V | 2 | 3xSwitch | Power Socket with LED+12V color display Voltmeter | 100 | 110 | 76 | ||
