NEW HOT cover! Carling Style 12V/ 24V LED Rocker Switch T85 15A Waterproof Cover "L" type new REVERSE CAMERA hotsale
price
USD1.50 - USD2.80 / pieces
SF-AL-LJ Series
FOB
10 pieces
10000pieces / Month
NINGBO, SHANGHAI

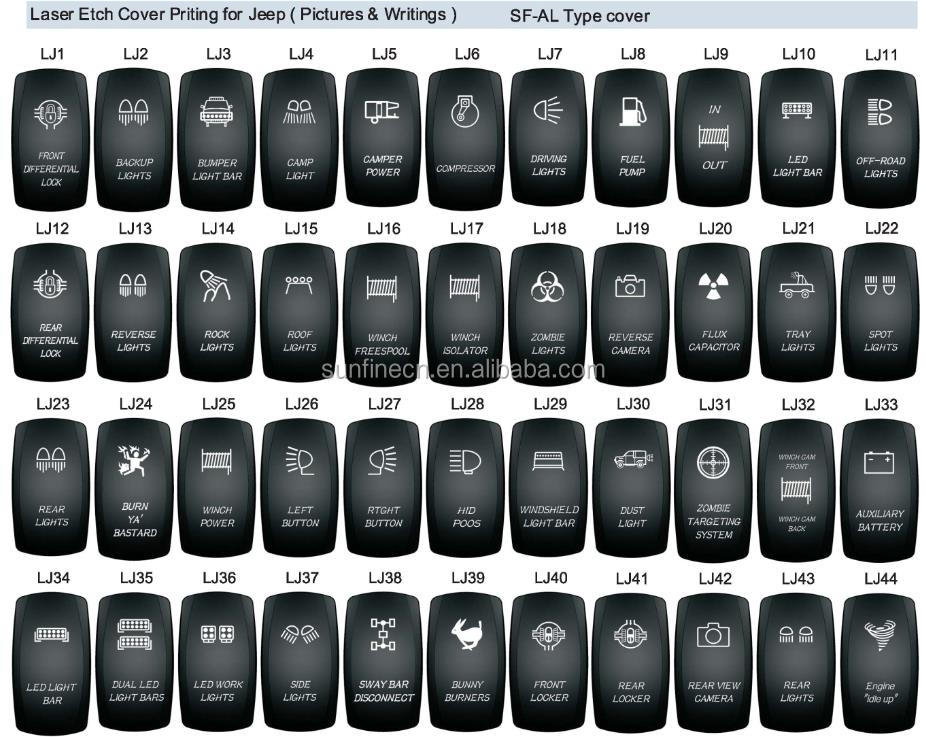

Products name:Laser Etch Cover Printing for Jeep(Picture&Writing)
Quantity
- boat electrical switch,waterproof light switch cover
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF-AL-LJ Series
- Max. Current:20A
- Max. Voltage:DC24V AC250V
- Mechanical Life:10000cycles
- Products name:Laser Etch Cover Printing for Jeep(Picture&Writing)
- led light color:red, blue, green, orange, white

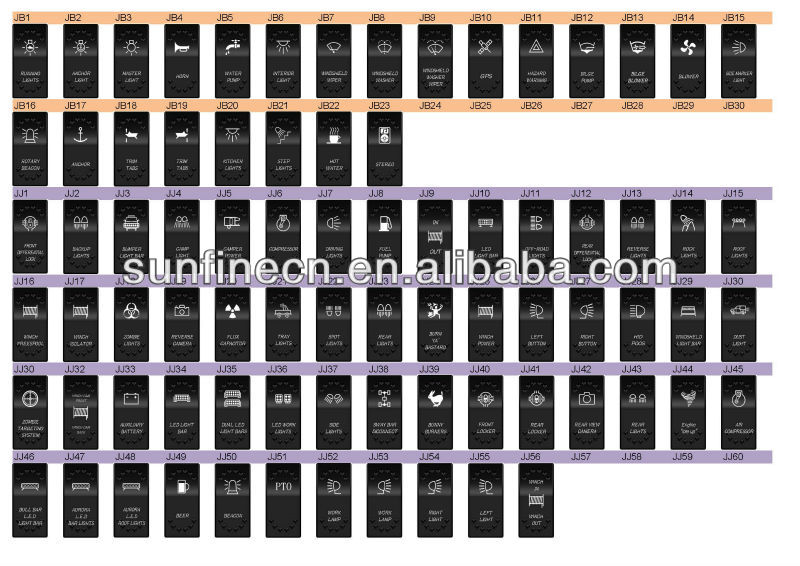

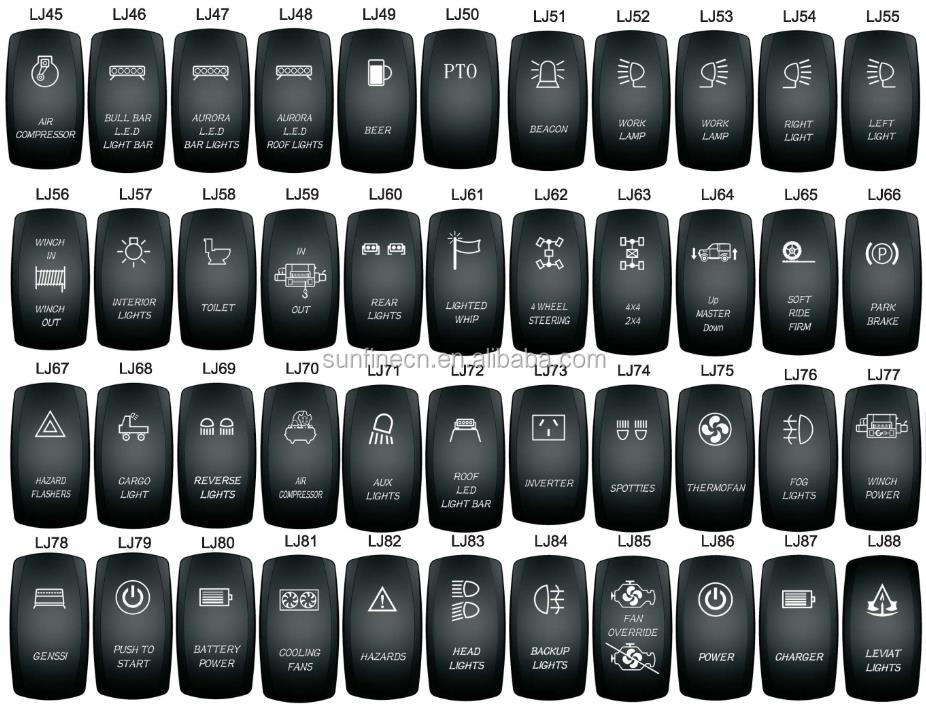

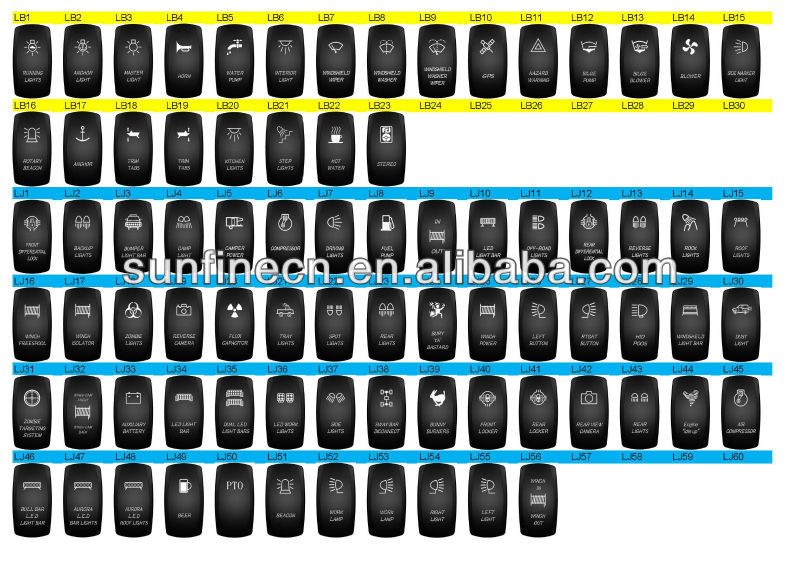

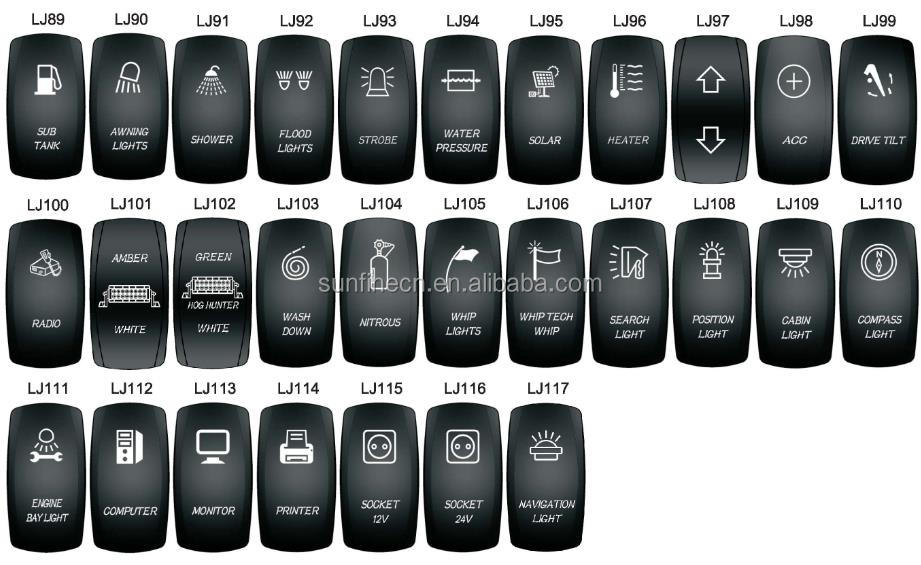

- Cover type:Laser cover"J"type,"L"type,SF-AL Type cover
Product Description

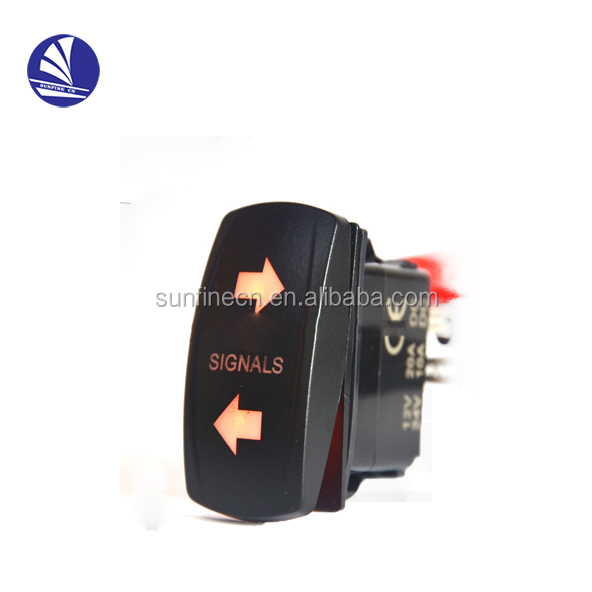

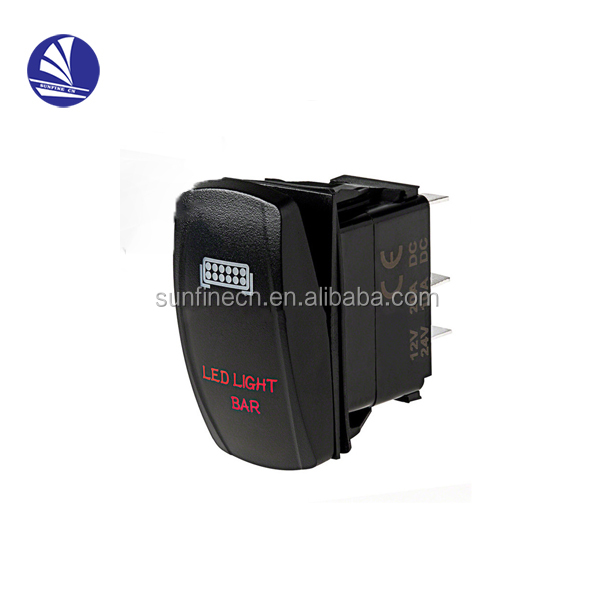

SUNFINE ROCKER SWITCH LASER ETCH PRINTING
SF-AL-LJ TYPE cover
car rocker switch
car rocker switch
| Production | Rocker switch with 2 LEDS |
| Volt | DC 20A@12V ; DC 10A@24V |
| LED Light Color | RED/GREEN/BLUE/ORANGE/WHITE |
| PIN | 3/4/5/6/7/8 Pins for your choice |
| Type | SPDT/SPST/DPDT/DPTT/DPST |
| Cover Type | SF-AL Type |
Specification
SF NO. with A4 cover with LED Light | Function | Type | Pin |
| SF50713-1-ALBB | ON-ON | SPDT | 4 |
| SF50713-2-ALBB | (ON)-ON | SPDT | 4 |
| SF50713-3-ALBB | ON-OFF-ON | SPDT | 4 |
| SF50713-4-ALBB | (ON)-OFF-ON | SPDT | 4 |
| SF50713-5-ALBB | (ON)-OFF-(ON) | SPDT | 4 |
| SF50713-6-3P-ALBB | ON-OFF | SPST | 3 |
| SF50713-6-4P-ALBB | ON-OFF | SPST | 4 |
| SF50713-6-5P-ALBB | ON-OFF | SPST | 5 |
| SF50713-7-3P-ALBB | (ON)-OFF | SPST | 3 |
| SF50713-7-4P-ALBB | (ON)-OFF | SPST | 4 |
| SF50713-7-5P-ALBB | (ON)-OFF | SPST | 5 |
| SF50714-1-ALBB | ON-ON | DPDT | 7 |
| SF50714-2-ALBB | (ON)-ON | DPDT | 7 |
| SF50714-3-ALBB | ON-OFF-ON | DPDT | 7 |
| SF50713-4-7P-ALBB | (ON)-OFF-ON | DPDT | 7 |
| SF50713-5-7P-ALBB | (ON)-OFF-ON | DPDT | 7 |
| SF50713-6-A-ALBB | (ON)-OFF-(ON) | DPDT | 8 (V A-A) |
| SF50713-6-B-ALBB | ON-ON-ON | DPTT | 68(V A-B) |
| SF50713-7-A-ALBB | ON-ON-ON | DPTT | 6(V A-A) |
| SF50713-7-B-ALBB | ON-ON-OFF | DPDT | 6(V A-B) |
| SF50713-8-A-ALBB | (ON)-ON-OFF | DPDT | 6(V A-A) |
| SF50713-8-B-ALBB | (ON)-ON-OFF | DPDT | 6(V A-B) |
| SF50713-10-ALBB | ON-OFF | DPST | 6 |
| SF50713-11-ALBB | (ON)-OFF | DPST | 6 |
SUNFINE SIMILARITY

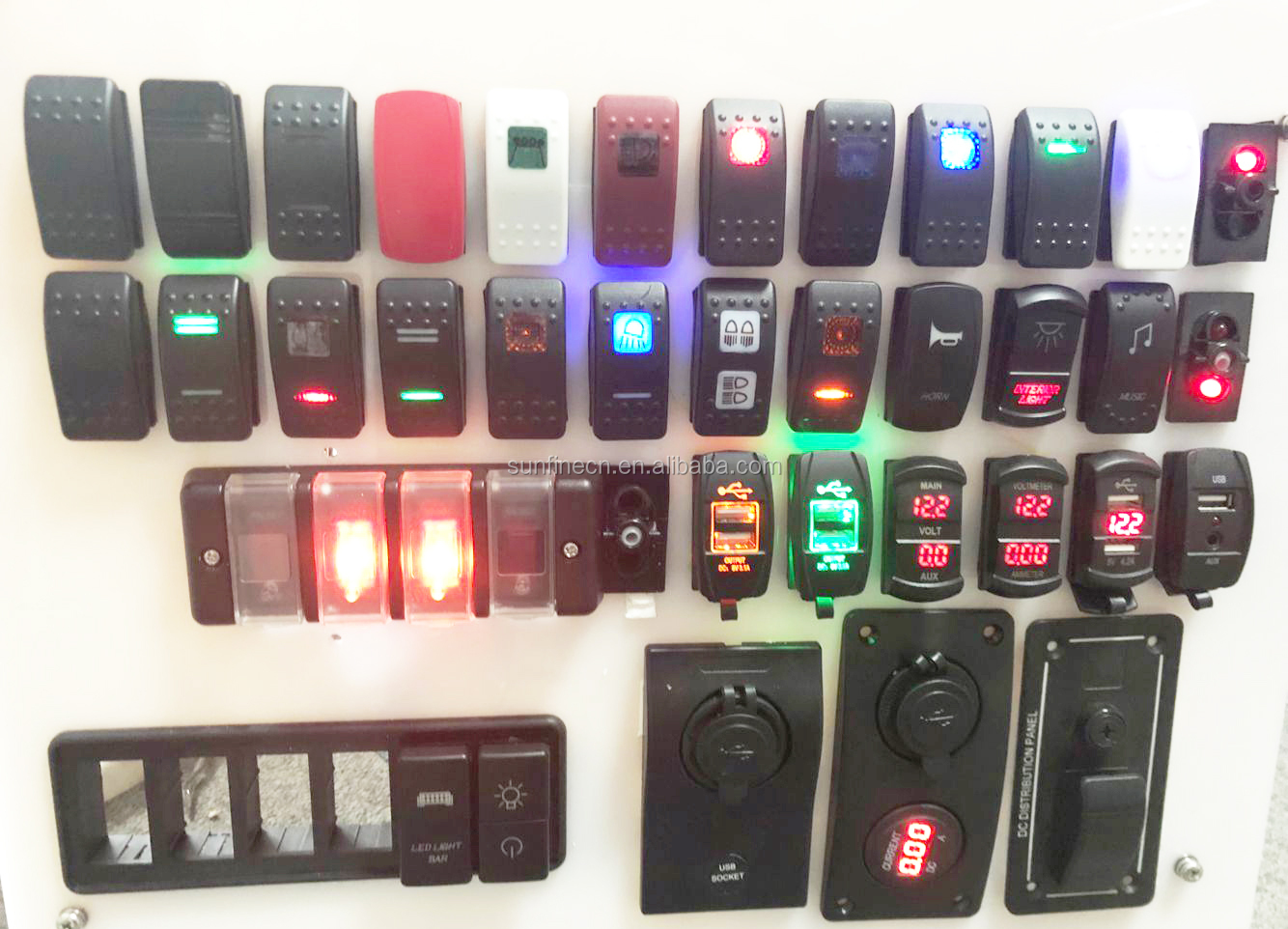

SUNFINE ROCKER SWITCH SERIAL
1. Rocker Switch------
1) We have 3 kinds for your choice, without light, with 1 light, and with 2 lights.
2) For light colors, we have 5 types for your choice, RED,GREEN,BLUE,ORANGE,WHITE.
3) Besides our listed switch, we also can customize according to your application use, once you have request out of these types, also welcome your inquiry anytime, now we can make switch with 8 pins. max.
4) To match with switch, we also have single mounting panel, or combined mounting panel including middle and end for your choice, also have actuator removal tool for your change the switch cover freely by yourself.
2. Switch Panel------
1) Our LED rocker switch panel is with IP 68 water-proof class.
2) We have switch panel with FUSE for your choice, also have that with BREAKER for your reference.
3) Also have ALUMINIUM panel switch for your more choice.
3. DC Socket------
1) We have different types for socket for your choice, with separate part, and also with whole set.
2) Now we are deloping USB socket, one is for ordinary phones, and the other is designed for IPHONE, in a couple of month, our these new style will come to the market.
Packaging & Shipping

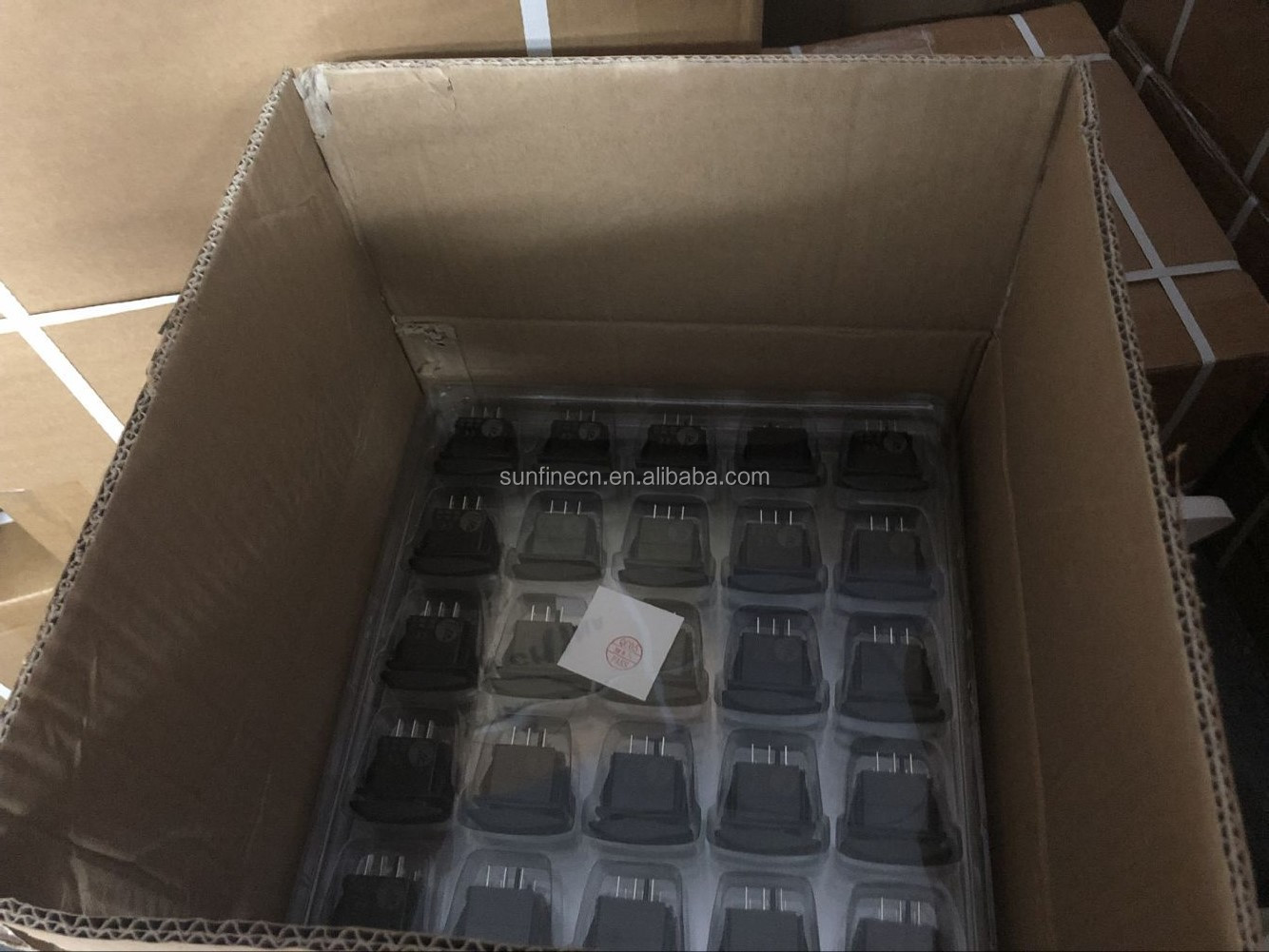

1. Blister packing for protecting rocker switch well.
2. By air, by sea, by courier, any shipping way is okay for us.

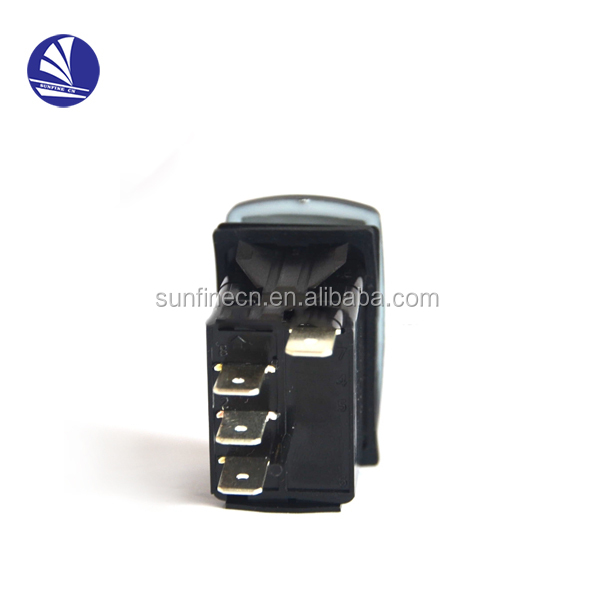

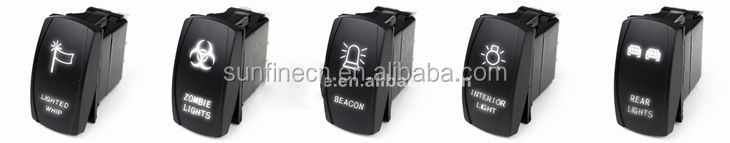

Detailed Images
