USD1.00 - USD5.00 / set
- rocker switch,Auto Illuminated Rocker Switch,rocker style light switch,illuminated rocker switch
- Model:Universal
- Car Fitment:Universal
- Type:Headlight Switch
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE
- Model Number:SF-A6
- Car Make:Universal
- Warranty:12
- Product Name:automotive rocker switch
- Packing:Customer Requirement
- Color:RED/GREEN/BLUE/ORANGE/WHITE
- Quality:100%tested
- Certification:CE
- Delivery time:15-30 Days
- Application:Automotive Parts
- Function:Convenient
- Voltage:24V/12V
- Switch type:waterproof 12v switch with normal cover
12V/ 24V Waterproof LED Boat/Auto Rocker Switch 10Amp/20Amp 3Pins to 8Pin SPST/SPDT/SPTT/DPST/DPDT/DPTT with1-2 LED Light
3 pins switch;automotive rocker switch;

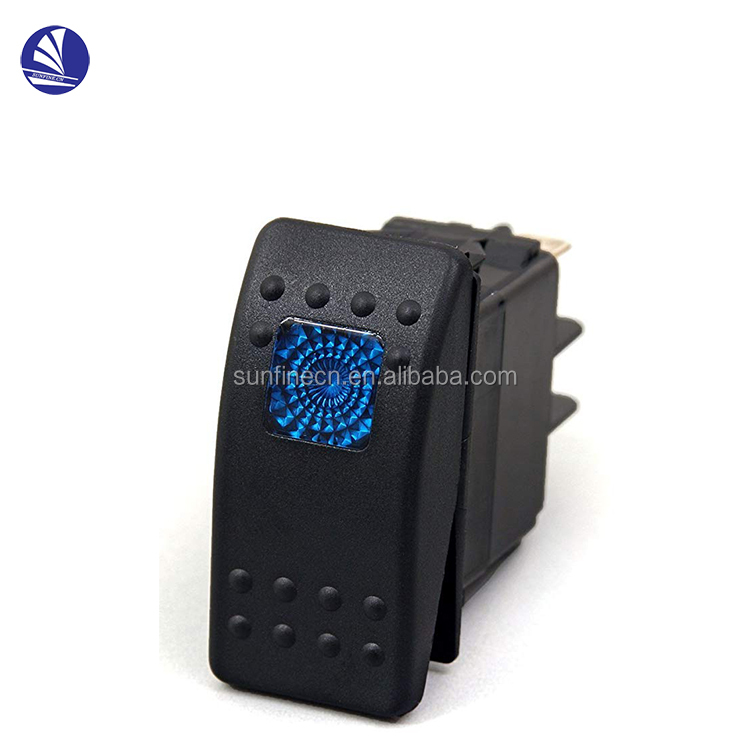

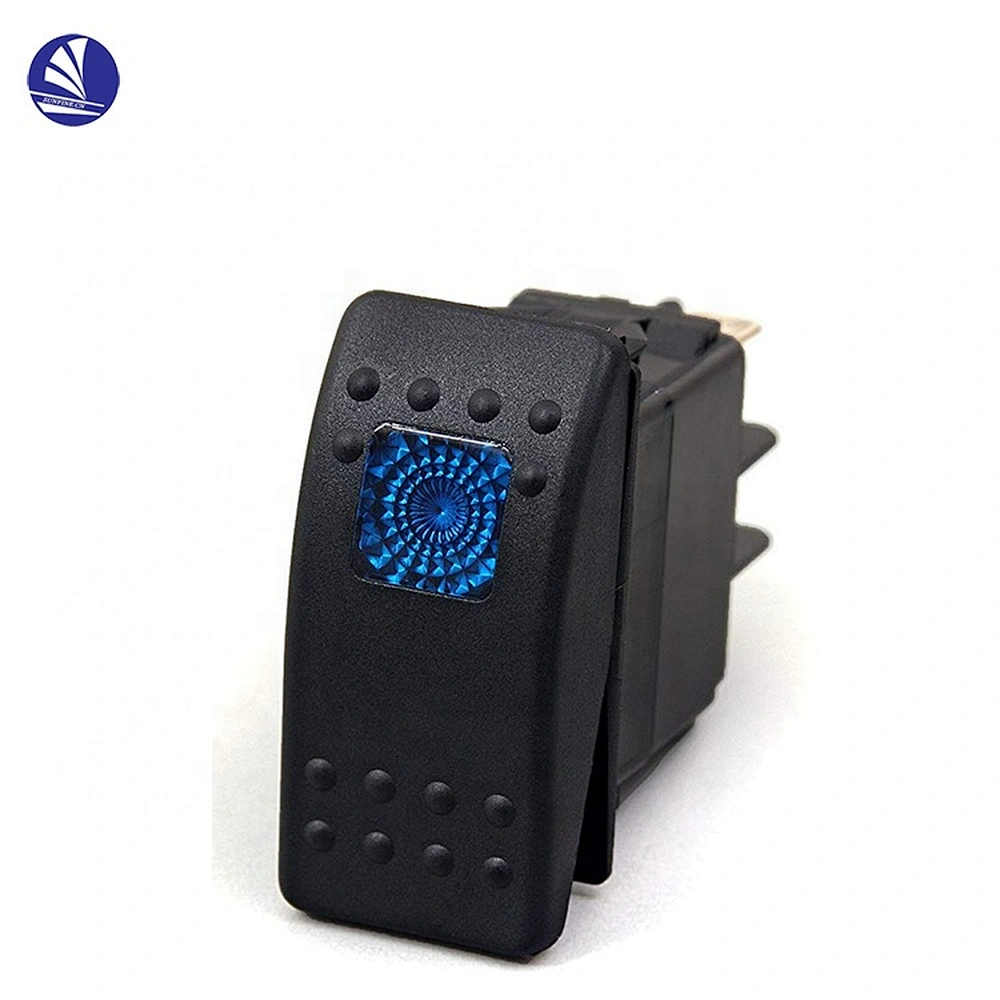

LED ROCKER SWITCH
| LED Light No. | One Led Light/Two Led Light |
| Voltage | DC 20A/12V; DC 10A/24V |
| LED Light Option | RED/GREEN/BLUE/ORANGE/WHITE |
| Cover Type | SF-A6 Series |

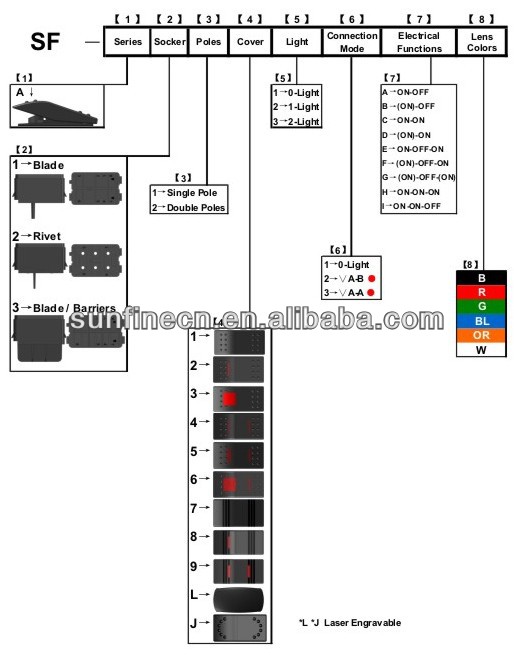

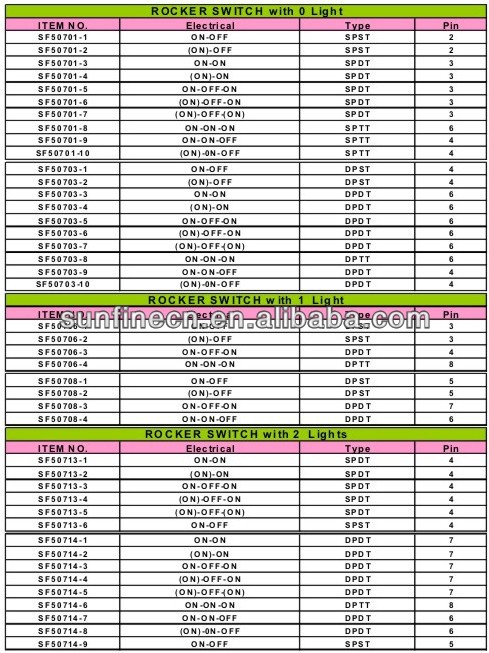

SF NO. With A6 Cover with Blue LED(BB) | Function | Type | Pin | Note | OTHER COVER FOR OPTION | |
Normal cover (suitable for extra printing) | Laser etch cover (suitable for laser etch printing) | |||||
| SF50713-1-A6BB | ON-ON | SPDT | 4 | A4/A5/A6/A9/AK/AG ie:SF50713-1-A9BR | AL/BL/BW/BX ie:SF50713-1-ALBW | |
| SF50713-2-A6BB | (ON)-ON | SPDT | 4 | |||
| SF50713-3-A6BB | ON-OFF-ON | SPDT | 4 | |||
| SF50713-4-A6BB | (ON)-OFF-ON | SPDT | 4 | |||
| SF50713-5-A6BB | (ON)-OFF-(ON) | SPDT | 4 | |||
| SF50713-6-3P-A6BB | ON-OFF | SPST | 3 | |||
| SF50713-6-4P-A6BB | ON-OFF | SPST | 4 | |||
| SF50713-6-5P-A6BB | ON-OFF | SPST | 5 | |||
| SF50713-7-3P-A6BB | (ON)-OFF | SPST | 3 | |||
| SF50713-7-4P-A6BB | (ON)-OFF | SPST | 4 | |||
| SF50713-7-5P-A6BB | (ON)-OFF | SPST | 5 | |||
| SF50714-1-A6BB | ON-ON | DPDT | 7 | |||
| SF50714-2-A6BB | (ON)-ON | DPDT | 7 | |||
| SF50714-3-A6BB | ON-OFF-ON | DPDT | 7 | |||
| SF50714-4-6P-A6BB | (ON)-OFF-ON | DPDT | 6 | |||
| SF50714-4-7P-A6BB | (ON)-OFF-ON | DPDT | 7 | |||
| SF50714-5-7P-A6BB | (ON)-OFF-(ON) | DPDT | 7 | |||
| SF50714-6-A-A6BB | ON-ON-ON | DPTT | 8 | V A-A | ||
| SF50714-6-B-A6BB | ON-ON-ON | DPTT | 8 | V A-B | ||
| SF50714-7-A-A6BB | ON-ON-OFF | DPDT | 6 | V A-A | ||
| SF50714-7-B-A6BB | ON-ON-OFF | DPDT | 6 | V A-B | ||
| SF50714-8-A-A6BB | (ON)-ON-OFF | DPDT | 6 | V A-A | ||
| SF50714-8-B-A6BB | (ON)-ON-OFF | DPDT | 6 | V A-B | ||
| SF50714-10-A6BB | ON-OFF | DPST | 6 | |||
| SF50714-11-A6BB | (ON)-OFF | DPST | 6 | |||

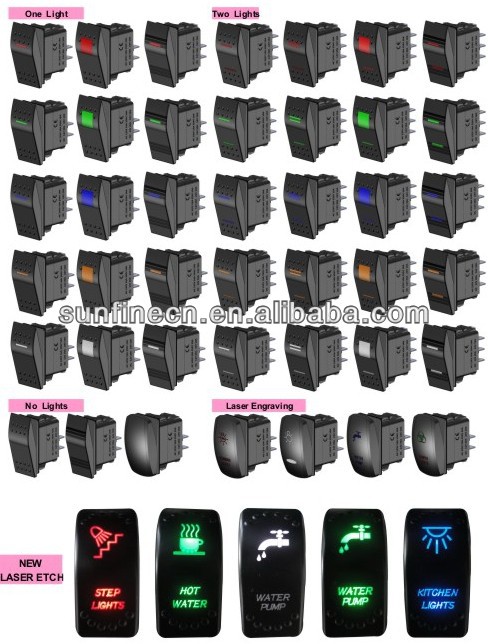

1. More models for your choice

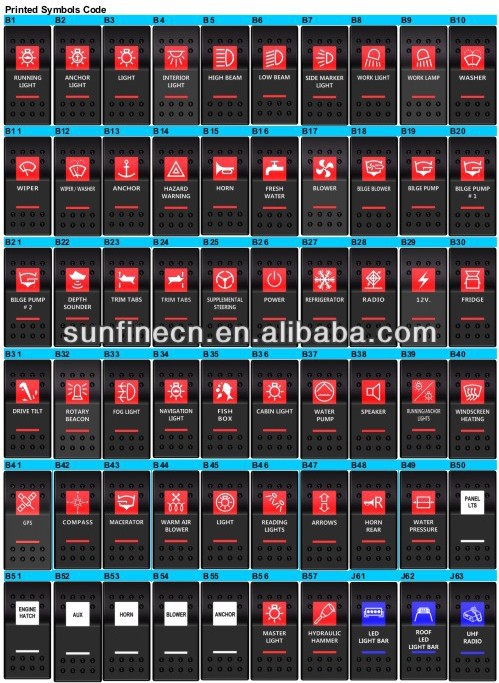

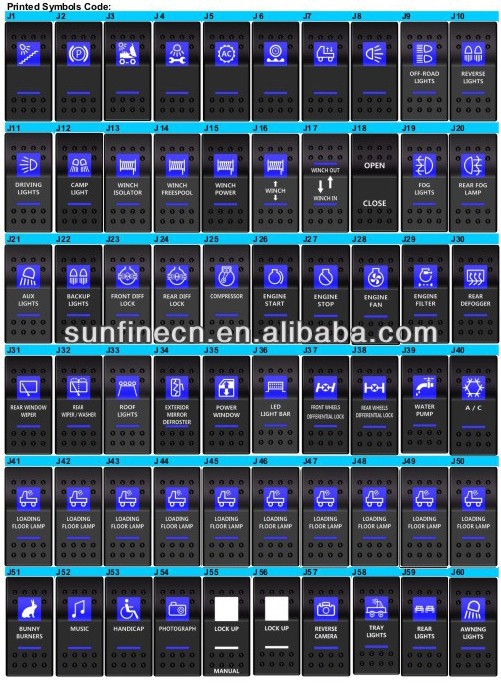

2. Switch cover printing for reference

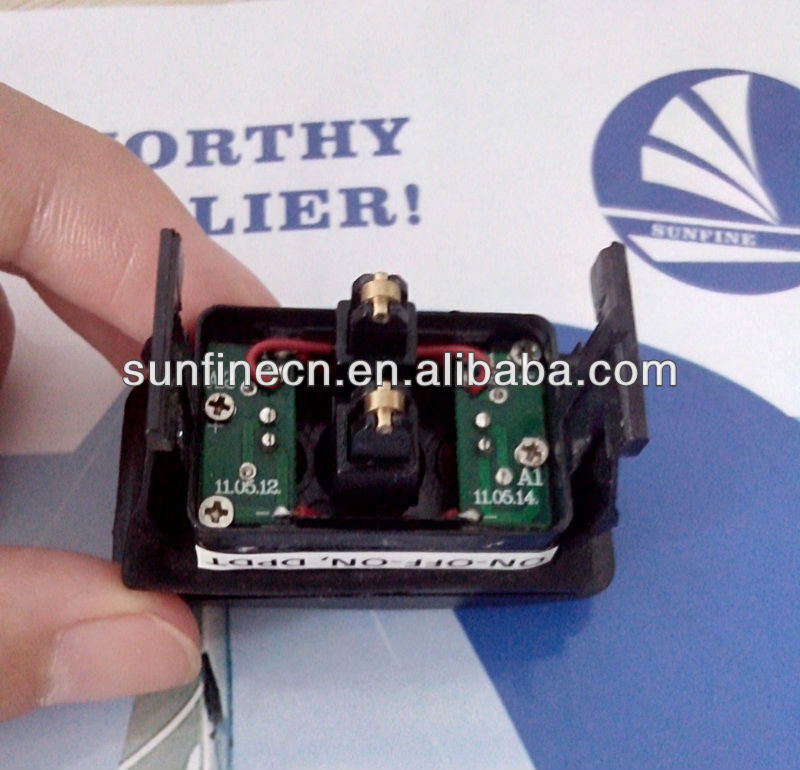

3.100% brass roller
4. insure switching work life: 10000 cycles
5. high-quality circuit board.
6. support custom switch type, support custom logo.
7. good blister packing and carton packig for protection

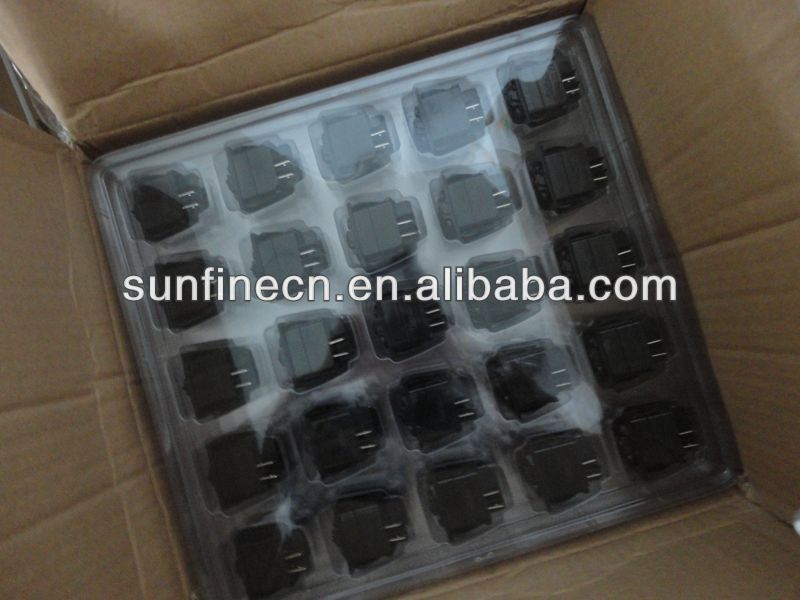

1. Blister packing to protect switch well after long time shipment
2. Delivery time: within 3-10 days after confirming payment
