Stainless Steel 316 turnbuckle Jaw and Jaw Frame type with Nut
price
USD3.30 - USD9.20 / pieces
FOB
20 pieces
10000pieces / Month
FOB NINGBO
Quantity
- Measurement system:Metric
- Turnbuckles body type:Open body
- Place of Origin:CN;ZHE
- Brand Name:SUNFINE MARINE
Product Description

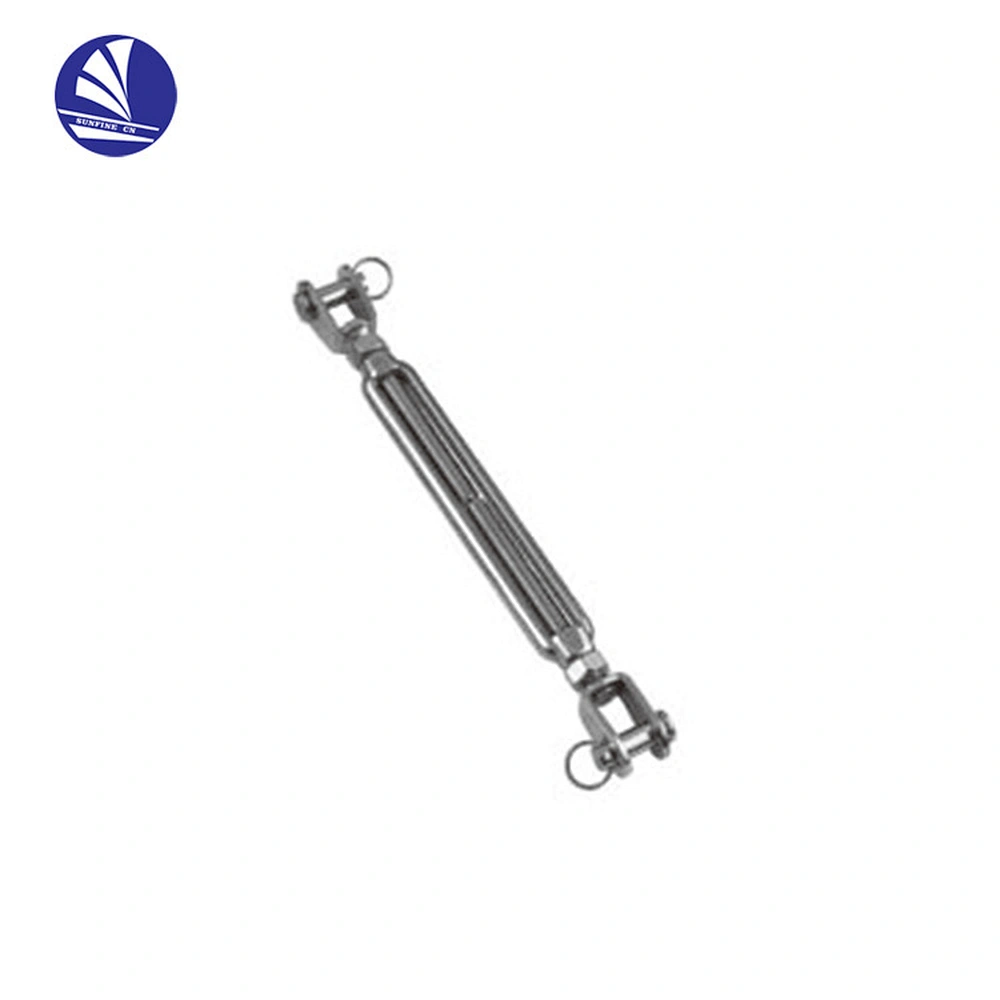

Stainless Steel 316 turnbuckle Jaw and Jaw Frame type with Nut
S.S 316 Turnbuckle, Frame type with Nut (Jaw and Jaw)

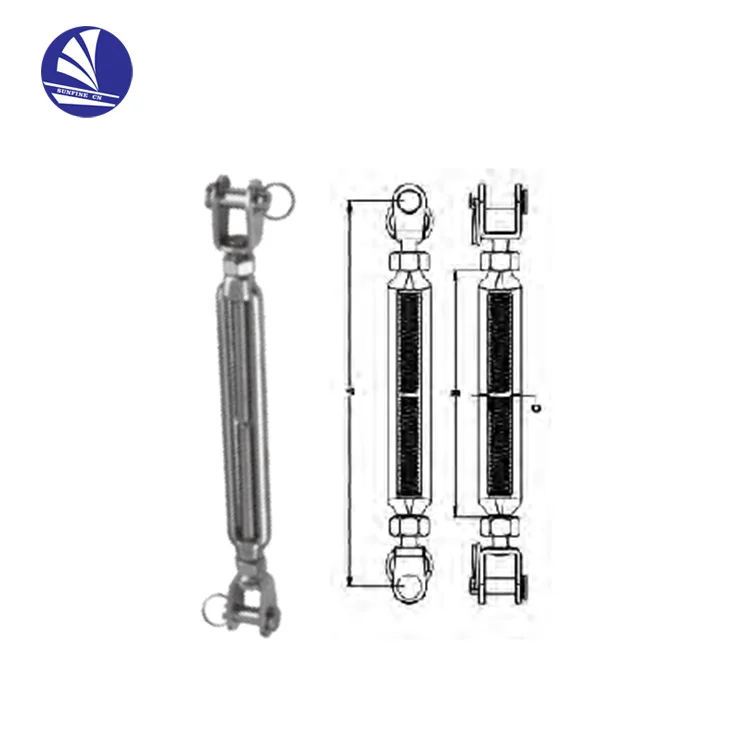

| Item No. | SIZE mm | A mm | B mm | C mm | SWL kgs | BL kgs |
| SF00304-1 | M5 | 125 | 71 | M5 | 188 | 750 |
| SF00304-2 | M6 | 136 | 91 | M6 | 350 | 1400 |
| SF00304-3 | M8 | 162 | 122 | M8 | 550 | 2200 |
| SF00304-4 | M10 | 222 | 150 | M10 | 863 | 3450 |
| SF00304-5 | M12 | 295 | 200 | M12 | 1250 | 5000 |
| SF00304-6 | M14 | 345 | 225 | M14 | 1600 | 6400 |
| SF00304-7 | M16 | 380 | 244 | M16 | 2000 | 8000 |
| SF00304-8 | M20 | 465 | 295 | M20 | 2625 | 10500 |
Detailed Images
